Bandsaw-Horizontal

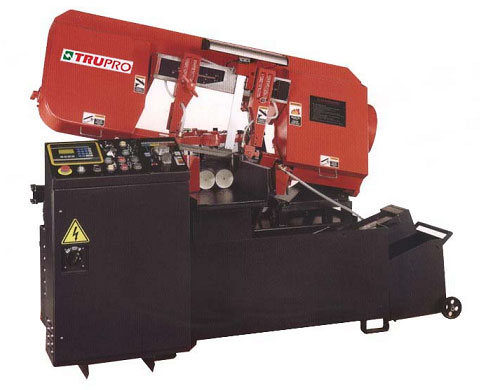

BSX-330C
Highly Efficient & Multi-Functional Automatic
Band Saw With compact Human-Machine Interface
Band Saw With compact Human-Machine Interface
-
ONTROL PANEL WITH COMPACT HUMAN-MACHINE INTERFACE:
This control system sets the length and quantity of cuts, it also displays blade speed and error indicator coded. The interface is combined with standard controls giving user full operation of the machine. -
HYDRAULIC BLADE TENSION CONTROL DEVICE:
with a hydraulic cylinder to control the blade tension. It is both quick and precise. -
FULL STROKE CYLINDERS FOR CLAMPING MATERIAL:
The machine is equipped with an automatic hydraulic shuttle and fixed vise which clamp the material safely and quickly.
-
ONTROL PANEL WITH COMPACT HUMAN-MACHINE INTERFACE:
Model BSX-330C Cutting capacity 330 mm 330x330 mm Blade size 34×1.1×4100 mm Blade speed 50 HZ 17~71 m/min
60 HZ 20~85 m/minMain motor 5 HP×4P Hydraulic motor 1 HP×4P Coolant motor 1/6 HP×4P Hydraulic tank 40 Liters Coolant tank 60 Liters Allowable loading capacity 1750 kg Roller stand loading capacity 1250 kg Min. residual work length 50 mm Bundle cutting 150~250×120~180 mm Min. residual work length(Bundle cutting) 170 mm Cut off length Over 10 mm Cutting amount setting 1~9999 Feeding stroke 400 mm Min. no material detecting 32 mm Table height 760 mm Floor space 2040×2215×1400 mm Machine weight 1700 kg / 1850 kg
