Bandsaw-Horizontal

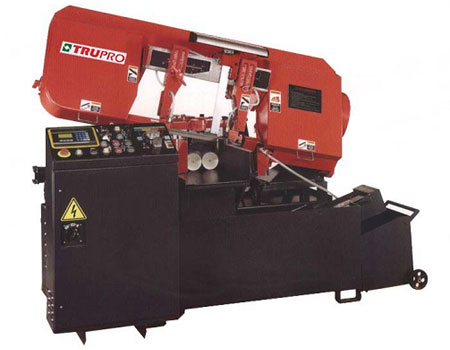

BSX-330NC
Highly Efficient & Multi-Functional Automatic
Band Saw With Human-Machine Interface
Band Saw With Human-Machine Interface
-
UMAN-MACHINE INTERFACE CONTROL PANEL:
Control panel designed with indicator and touch control system. It is very easy to read and operate. This has multiple function for setting and programing with an indicator to show abnormal functioning device. -
LINEAR MEASUREMENT DEVICE FOR FEEDING MATERIAL:
Using a linear encoder in the feeding system to get required length easily and with precision. -
INVERTER’S BLADE SPEED ADJUSTING DEVICE AND PLC CONTROLLED SYSTEM:
After setting, this system can be programmed to provide multiple action during operation.
-
UMAN-MACHINE INTERFACE CONTROL PANEL:
Model BSX-330NC Cutting capacity
330 mm
330x330 mmBlade size 34×1.1×4100 mm Blade speed 50 HZ 17~71 m/min
60 HZ 20~85 m/minMain motor 5 HP×4P Hydraulic motor 1 HP×4P Coolant motor 1/6 HP×4P Hydraulic tank 40 Liters Coolant tank 60 Liters Allowable loading capacity 1750 kg Roller stand loading capacity 1250 kg Min. residual work length 50 mm Bundle cutting 150~250×120~180 mm Min. residual work length(Bundle cutting) 170 mm Cut off length Over 10 mm Cutting amount setting 1~9999 Feeding stroke 400 mm Min. no material detecting 32 mm Table height 760 mm Floor space 2040×2215×1400 mm Machine weight 1700 kg / 1850 kg
