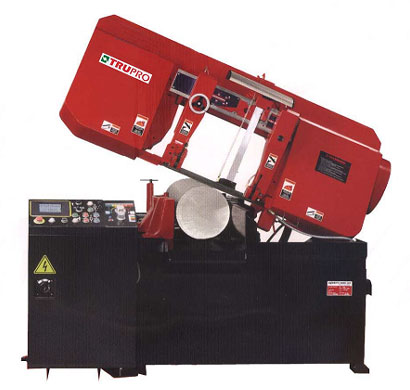

Bandsaw-Horizontal
BSX-400NC
Highly Efficient & Multi-Functional Automatic
Band Saw With Human-Machine Interface
Band Saw With Human-Machine Interface
- HUMAN-MACHINE INTERFACE CONTROL PANEL:
Control panel designed with indicator and touch control system. It is very easy to read and operate. This has multiple function for setting and programing with an indicator to show abnormal functioning device. - HYDRAULIC BLADE TENSION CONTROL DEVICE:
With a hydraulic cylinder to control the blade tension. It is both quick and precise. - AUTOMATIC CHIP REMOVER SYSTEM:
Automatic cleaning chiptray device that is driven by the hydraulic motor which is durable and easy to repair.
- HUMAN-MACHINE INTERFACE CONTROL PANEL:
Model BSX-400NC Cutting capacity
420 mm
415x415 mmBlade size 34×1.1×4770 mm Blade speed 50 HZ 15~75 m/min
60 HZ 17~90 m/minMain motor 7.5 HP×4P Hydraulic motor 2 HP×4P Coolant motor 1/4 HP×4P Hydraulic tank 40 Liters Coolant tank 120 Liters Allowable loading capacity 2500 kg Roller stand loading capacity 2000 kg Min. residual work length 76 mm Bundle cutting 200~300×150~200 mm Min. residual work length(Bundle cutting) 240 mm Cut off length Over 10 mm Cutting amount setting 1~9999 Feeding stroke 400 mm Min. no material detecting 32 mm Table height 760 mm Floor space 2480×2460×1590 mm Machine weight 2250 kg / 2500 kg
