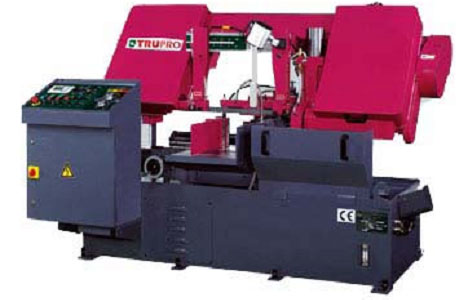

Bandsaw-Horizontal
BS-3028FHA / BS-4033FHA / BS-420FHA / BS-460FHA / BS-5650FHA / BS-560FHA
Fully Automatic Hydraulic Band Saw
Control panel:
Control panel and touch screen collocated with human machine interface allow easy operation and high efficiency. The information of problems and trouble shooting are showed in screen when machine operates abnormally and historical data also recorded for reference
High efficiency transmission system:
A double-connected type belt is adopted to avoid sliding. The power is fully transmitted to saw blade. With easy replacement device of belt, it saves time.
Hydraulic chip conveyor:
The reverse pushing design conveys chips efficiently. It can make chips drier when conveying and save more space.
Hydraulic blade tension
The blade tension is preset according to practical demand and maintained. The blade is loosened when the machine stops. It allows high cutting efficiency and long blade life.
Nesting fixture:
Two sets of vertical pressing device allow high accuracy, efficiency and convenience for bundle cutting.
Blade shockproof device:
The Anti-vibrating device is designed to decrease the vibrating and noise of blade when cutting is proceeding.
Sliding feeding rollers:
The rollers allow more smooth and less friction of workpiece feeding especially for heavy or rough workpiece.
Two step full stroke vise:
The excellent design combines the advantage of rack and full stroke. The much shorter hydraulic cylinder effectively saves the space of machine dimension.
Electrical circuit board:
An efficient PLC and high quality components are adopted for electrical control system. The applicable space collocation allows easy and convenient maintenance and save time.Model BS-3028FHA BS-4033FHA BS-420FHA CUTTING CAPACITY ROUND 10~280mm 10~330mm 10~420mm SQUARE & RECTANGULAR W10×H10~W300×H280 mm W10×H10~W400×H330 mm W10×H10~W420×H420 mm Blade speed MAX. W250×H100mm W370×H170mm W370×H200mm MIN. W165×H15mm W165×H50mm W165×H80mm SAW BLADE SIZE 3820×34×1.1mm 4242×34×1.1mm 4880×41×1.3mm SPEED 16~85m/min 16~85m/min 16~85m/min TENSION HYDRAULIC HYDRAULIC HYDRAULIC MOTORS OUTPUT SAW BLADE 3.7KW (5HP) 3.7KW (5HP) 5.5KW (7.5HP) HYDRAULIC PUMP 0.75KW (1HP) 0.75KW (1HP) 1.5KW (2HP) COOLANT PUMP 0.12KW(1/6HP) 0.12KW(1/6HP) 0.2KW(1/4HP) TANKS HYDRAULIC 60L 60L 85L COOLANT 80L 90L 100L FEED LENGTH 400/3600mm 500/4500mm 500/4500mm WORKING HEIGHT 700mm 700mm 700mm DIMENSIONS W2110×H1300×L1990
mmW2240×H1690×L2195
mmW2430×H1640×L2230
mmNET WEIGHT 1750kg 2000kg 2450kg Model BS-460FHA BS-5650FHA BS-560FHA CUTTING CAPACITY ROUND 460mm 10~500mm 100~560mm SQUARE & RECTANGULAR W10×H10~W510×H460
mmW10×H10~W560×H500
mmW100×H100~W610×H560
mmBlade speed MAX. W370×H240mm W480×H260mm NA MIN. W165×H80mm W240×H80mm SAW BLADE SIZE 5300×41×1.3mm 5450×41×1.3mm 6600×54×1.6mm SPEED 16~85m/min 16~85m/min 16~85m/min TENSION HYDRAULIC HYDRAULIC HYDRAULIC MOTORS OUTPUT SAW BLADE 5.5KW (7.5HP) 5.5KW (7.5HP) 7.5KW (10HP) HYDRAULIC PUMP 1.5KW (2HP) 1.5KW (2HP) 2.2KW (3HP) COOLANT PUMP 0.2KW(1/4HP) 0.2KW(1/4HP) 0.2KW(1/4HP) TANKS HYDRAULIC 85L 85L 130L COOLANT 95L 95L 140L FEED LENGTH 500/4500mm 500/4500mm 400/3600mm WORKING HEIGHT 750mm 750mm 850mm DIMENSIONS W2600×H1770×L2240
mmW2630×H1800×L2250
mmW3120×H2160×L2125
mmNET WEIGHT 2850kg 3000kg 4200kg Standard Equipments & Accessories: (For FHANC / FHA Series) - PLC control for all electric and hydraulic functions.
- Infinitely variable blade speed controlled by inverter.
- Idle wheel motion detector with blade stalling and breakage shutoff.
- Shuttle type automatic feed and sliding work table with roller.
- Hydraulic blade tension.
- Two-step full stroke vises.
- Automatic blade height control and rapid approach.
- Carbide blade guide with roller bearing.
- Nesting fixture for bundle cutting.
-
Length setting : FHANC: Magnetic scale.
FHA: Screw & nut with digital indicator. - 20 workstations presetting. (FHANC)
- Automatic chip conveyor.
- Power driven blade-cleaning wire brush.
- Flushing hose for machine cleaning.
- Work lamp.
- One set of tools in tool box.
- ne set of 2-meter roller stand.
Optional Equipments:(For FHANC / FHA Series) - Variable vise pressure device for pipe cutting.
