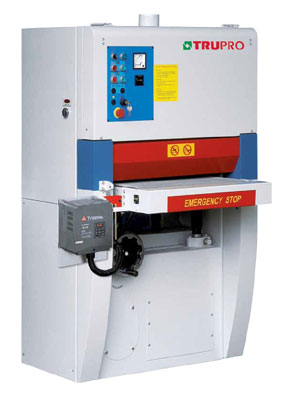

Lacquered Sander
-
25", 36", 52" Lacquered Panel Sander

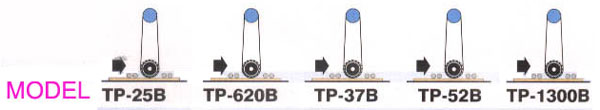

Model TP-25B TP-620B TP-37B TP-52B TP-1300B Working width 610mm 620mm 910mm 1300mm 1300mm Working height 125mm 125mm 125mm 125mm 125mm Main motor standard 5HP 7 1/2HP 7 1/2 HP 15mm 20mm Feed motor 1HP 1HP 1HP 3HP 3HP Table hoist motor 1/2HP 1/2HP 1/2HP 1/2HP 1/2HP Feed speeds (variable) 6-24 M/min 6-24 M/min 6-24 M/min 6-24 M/min 6-24 M/min Sanding belt size 24" x 48 " 25" x 60" 37" x 60 " 52" x 75" 52" x 84" Compressed air required 5 kg/cm2 5 kg/cm2 5 kg/cm2 5 kg/cm2 7 kg/cm2 Exhaust volume requirement 2060 M3/Hr 2060 M3/Hr 3090 M3/Hr 3500 M3/Hr 5180 M3/Hr Net weight 620kg 780kg 900kg 2000kg 2500kg Gross weight 740kg 940kg 1150kg 2300kg 2800kg Dimensions (L x W x H) 50"x52"x62" 50"x52"x68" 58"x56"x68" 102"x70"x80" 107"x70"x80" Packing size (L x W x H) 52"x54"x70" 50"x52"x77" 60"x58"x77" 104"x72"x89" 109"x74"x89"
