Painting Line
Flow Type for Top Coating

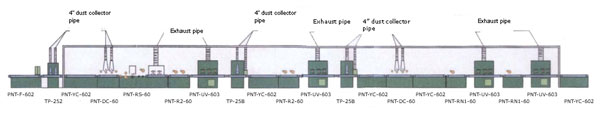

Painting Line
- PNT-F-602Feeder
Model PNT-F-602 Effective feeding width 75~600 mm Effective feeding thickness 12~25 mm Feeding plate 5 pcs conveyor belt Feeding speed by inverter 0~30 M/min Power 0.75 kw Feeding length 300~2000 mm Machine dimensions 2000×1070×1200 mm N.W. 120 kgs Packing dimensions 2200×1170×1400 mm PNT-DC-60Dust cleaning machine
Model PNT-DC-60 Effective cleaning width 620 mm Max. workpiece thickness 75 mm Min. workpiece length 300 mm Feeding speed 0~32 M/min Feeding speed by inverter 0~30 M/min Power 3 kw Machine dimensions 1400×1220×1600 mm N.W. 600 kgs Packing dimensions 1480×1400×1400 mm PNT-RS-60Bottom Roller Coating Curing & Staining Machine
Model PNT-RS-60 Effective coating width 620 mm Max. workpiece thickness 75 mm Min. workpiece length 400 mm Feeding motor 0.75 kw Coating roller Lower coating roller 1 set
Upper coating roller 1 setUltraviolet ray lamp
(power comsuption)Lower coating lamp(7.5kw×1pc)
Upper coating roller(5kw×2pcs)Power 19 kw Feeding speed 0~32 M/min Machine dimensions 2600×1220×2000 mm N.W. 700 kgs Packing dimensions 2700×1320×2200 mm PNT-R2-60Roller Type Coating Machine
Model PNT-R2-60 Effective coating width 620 mm Max. workpiece thickness 2.5~75 mm Min. workpiece length Roller type 400 mm
Belt type 100 mmFeeding speed 0~32 M/min Paint container 30 Power 0.75 kw Pump Air diaphragm pump 3/8" Machine dimensions 1180×1280×1200 mm N.W. 600 kgs Packing dimensions 1320×1410×1360 mm PNT-RN1-60Roller Type Coating Machine
Model PNT-RN1-60 Effective coating width 620 mm Max. workpiece thickness 2.5~75 mm Min. workpiece length Roller type 400 mm
Belt type 50 mmFeeding speed 0~30 M/min Paint container 30 Coating roller power 0.4 kw Doctor roller power 0.2 kw Feed motor power 0.4 kw Pump Air diaphragm pump 3/8" Machine dimensions 1180×1280×1370 mm N.W. 650 kgs Packing dimensions 1320×1410×1540 mm PNT-UV-603UV Curing Machine
Model PNT-UV-603 Effective cleaning width 600 mm Max. workpiece thickness 75 mm Feeding speed 0~30 M/min Paint container 30 Lamp power 5 kw × 3 Total power 18 kw Machine dimensions 2460×1160×2050 mm N.W. 600 kgs Packing dimensions 2600×1150×2050 mm PNT-SMUV-60Flow Surface Coater
Model PNT-SMUV-60 Effective coating width 650 mm Coating flow width 720 mm Max. coating thickness 200 mm Min. coating length 230 mm clearance 0~1.0 mm Feeding speed 0~120 M/min Heating power 6 kw Paint container 200 L Min. cycle coating capacity 120 L Feed motor power 0.75 kw pump motor power 0.75 kw Machine dimensions
Tank size3550×1410×1300 mm
1390×730×1300 mmMachine N.W.
Tank N.W.650 kgs
150 kgsMachine Packing dimensions
Tank Packing dimensions3820×1480×1480 mm
1590×870×1480 mmPNT-YC-602Conveyor
Model PNT-YC-602 Effective width 600 mm Feed speed 0~32 M/min Power 0.4 kw Machine weight 110 kgs Machine size 2000×950×870 mm PNT-IR-603Heat Straightening Machine(Optional)
Model PNT-IR-603 Effective width 600 mm Max. working thickness 75 mm Feed speed 0~32 M/min Power 6 kw Machine weight 900 kgs Machine size 3000×950×1100 mm TP-252Wide Belt Sander
Model TP-252 Working width 610mm Working height 125mm Main motor standard 15, 10HP Feed motor 2HP Table hoist motor 1/2HP Feed speeds (variable) 4-16 M/min Sanding belt size 25" x 60" Compressed air required 5 kg/cm2 Exhaust volume requirement 3090 M3/Hr Net weight 1350kg Gross weight 1600kg Dimensions (L x W x H) 74" x 54" x 70" Packing size (L x W x H) 78" x 57" x 76" TP-25BLacquered Panels Sander
Model TP-25B Working width 610mm Working height 125mm Main motor standard 5HP Feed motor 1HP Table hoist motor 1/2HP Feed speeds (variable) 6-24 M/min Sanding belt size 24" x 48" Compressed air required 5 kg/cm2 Exhaust volume requirement 2060 M3/Hr Net weight 620kg Gross weight 740kg Dimensions (L x W x H) 50" x 52" x 62 " Packing size (L x W x H) 52" x 54" x 70"
