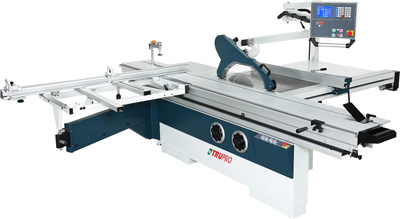

Panel Saw

Model

PS-405ME

Sliding table dimension

3200x385mm

Cast Iron table

548x896mm

Extension table (rear)

952x896mm

Extension table (front)

830X320mm

Table size

1500x1726mm

Round rail

φ50mm

Main saw blade

φ400 (16'')

Main saw bore

ψ30mm

Max. cutting height at 90°(355mm)

105

Max. cutting height at 45°(355mm)

70

Main motor power (3ph)

7.5 HP (5.5 KW)

Main blade speed

3000/4000/5000rpm

Scoring saw blade

φ120

Scoring saw blade bore

 ψ20mm

Scoring blade motor power

1HP(0.75kw)

Scoring blade speed

8000 rpm

Cuting width

1300mm

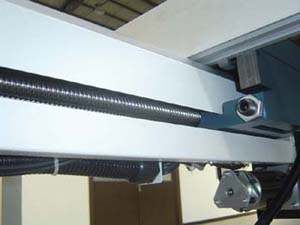

Cuting width adjustment

Motorized

Main saw blade tilting adjustment

Manual (0°~ 45°)

Main saw height adjustment

Manual

Scoring saw adjustment

Manual

Saw guard

Simple (Overhead guard is optional)

Dust collection system

120/60mm

N.W./G.W./MEAS.: (Machine)

670/770kgs (2100x1100x1120mm)

N.W./G.W./MEAS.: (Sliding table)

158/213kgs (3390x490x370mm)

N.W./G.W./MEAS.: (Overhead guard B type)

39/45kgs (1200x730x230mm)

Ctn QTY

7/17sets
