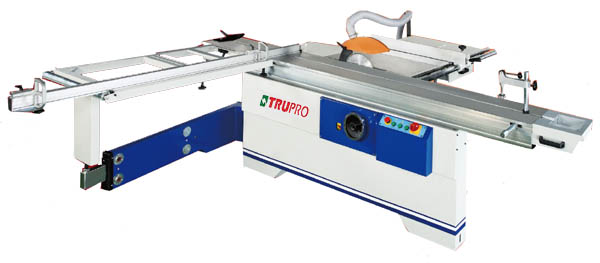

Panel Saw
l Blade tilts 45 degrees for miter cutting.
l Miter fence can be positioned at 45 degrees right and left.
l Table extension on right and rear side of main table permits convenient cutting of large panels.
l Durable extruded alum. Sliding table.
l Precision ground cast iron main table.
l Large handle for effortless cutting operation.
l Quick clamp on sliding table.
l Scoring blade ensures tear free cutting.
Model
PS-3200
Motor power
5HP
Depth of cut: (90°/45°)
100/72mm(90°/45°)
Main blade speed
4100 R.P.M
Scoring blade speed
8200 R.P.M
Main table size
835x438mm
Dust hood outlet
100mm
Max. travel of sliding table
3300mm
Max. length of cut
3050mm
Main blade size(not included)
305mm, Ø30mm
Scoring blade size
80mm, Ø 20mm
Net weight
Machine: 492 kgs
Sliding: 120 kgs
Gross weight
Machine: 600 kgs
Sliding: 150 kgs
Package dimension
Machine: 109×227×106 cm
Sliding: 332×43×36 cm
