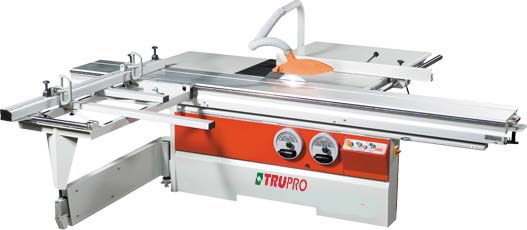

Panel Saw
Standard accessories:
Simple Saw Guard
Miter Fence
Scoring blade adjusting unit
Optional accessories:
Luxurious Saw Guard
Cross cut Digital Display stop
Digital display for the tilting /angle
LED display for the rpm
Model
PS-19
PS-26
PS-32
Rectified cast iron fixed table dimension
570×1000mm
Sliding table dimension
380×1900mm
380×2600mm
380×3200mm
Main saw blade
Ø 305mm (Max. Ø 355mm - Optional)
Main saw bore
Ø 30mm (Ø 25.4mm)
Max. cutting height with blade at 90°
105mm
Max. cutting height with blade at 45°
73mm
Main motor power
5HP
7.5HP
7.5HP
Main blade speed
3000 / 4000 / 5000rpm
Scoring saw blade
Ø 120mm
Scoring saw blade bore
Ø 22mm
Scoring saw blade motor power
0.75HP
1HP
1HP
Scoring saw blade speed
8000rpm
Cutting width
1000mm
1300mm
1300mm
Cutting width adjustment
Manual
Saw table extension
370mm (Optional:720mm)
Miter fence
Standard
Blade tilting adjustment
Manual (0~45°)
Main saw height adjustment
Manual
Scoring saw height adjustment
Manual
Scoring saw +/- direction adjustment
Manual
Blade tilting angle show
Simple (Optional: Digital display)
Main blade speed show
LED exhibit
Overhead saw guard
Simple (Optional: Luxurious)
Crosscut fence digital display
Optional
Rip fence digital display
Optional
Safety bar
--
Hanging type control panel
--
Rapid clamp
Optional
Tool frame
Standard
Dust collection system
Main chanel 4", simple 60mm, luxurious 3"
