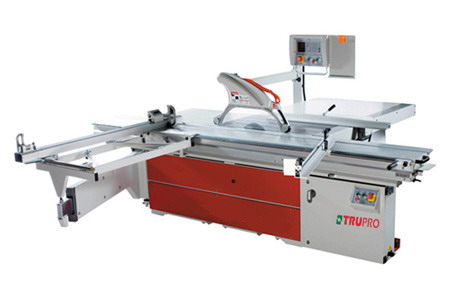

Panel Saw
Standard accessories:
Simple Saw Guard
Miter Fence
CNC control panel
For up/ down movement, tilting and setting of cutting width, Furthermore, provides 30 sets of memory capacity program.
Optional accessories:
Luxurious Saw Guard
Cross cut Digital Display stop
Model
PS-2600TA-3X / PS-3200TA-3X / PS-3800TA-3X
Rectified cast iron fixed table dimension
620×1000mm
Sliding table dimension
380×2600 / 3200 / 3800mm
Main saw blade
Ø 305mm (Max. Ø 355mm - Optional)
Main saw bore
Ø 30mm (Ø 25.4mm)
Max. cutting height with blade at 90°
100mm
Max. cutting height with blade at 45°
70mm
Main motor power 7.5HP (5.5KW)
Standard
Main motor power 10HP (7.5KW)
Optional
Main blade speed
3000 / 4000 / 5000 / 6000rpm
Scoring saw blade
Ø 120mm
Scoring saw blade bore
Ø 22mm
Scoring saw blade motor power
1HP
Scoring saw blade speed
8000rpm
Cutting width
1300mm (Optional:1500mm
Cutting width adjustment
CNC control
Saw table extension
400mm (Optional:800mm)
Miter fence
Standard
Blade tilting adjustment
Digital control (0~45°)
Main saw height adjustment
CNC control
Scoring saw height adjustment
Motorize
Scoring saw +/- direction adjustment
Motorize
Blade tilting angle digital display
Standard
Main blade speed digital display
Standard
Overhead saw guard
Simple (Optional: Luxurious)
Crosscut fence digital display
Optional
Rip fence digital display
--
Safety bar
standard
Hanging type control panel
Optional
Rapid clamp
Optional
Tool frame
Standard
Dust collection system
Main chanel 5", simple 2", luxurious 3"
