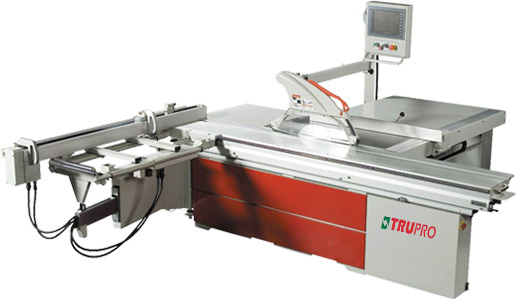

Panel Saw
Standard accessories:
Luxurious Saw Guard
Safety bar
The scoring saw can do electrically up/down and forward/backward adjustment and has micro-motion function.
Optional accessories:
Clamping shoe and rapid clamp
Cross cut Digital Display stop
Digital display rip fence
Model
PS-350-3H
Main saw blade diameter max.
Ø 400mm (16")
Max. cutting height with blade at 90°
100mm
Max. cutting height with blade at 45°
70mm
Rectified cast iron fixed table dimension
620×1000mm
Touch screen
5.7" STN color
Sliding table dimension
380×2600 / 3200 / 3800mm
Main saw bore
Ø 30mm (Ø 25.4mm)
Main motor power 7.5HP (5.5KW)
Standard
Main motor power 10HP (7.5KW)
Optional
Main blade speed
3000 / 4000 / 5000 / 6000rpm
Scoring saw blade
Ø 120mm
Scoring saw blade bore
Ø 22mm
Scoring saw blade motor power
1HP
Scoring saw blade speed
8000rpm
Cutting width
1300mm (Optional:1500mm
Saw table extension
400mm (Optional:800mm)
Cross-cut fence
Manual
Cross-cut fence flip stop digital display
Optional
Miter fence
Standard
Cross-cut miter fence
Manual +-46°
Cutting width adjustment
CNC control
Blade tilting adjustment
CNC control (0~45°)
Main saw height adjustment
CNC control
Scoring saw height adjustment
Motorize
Scoring saw +/- direction adjustment
Motorize
Overhead saw guard
Luxurious
Crosscut fence digital display
Optional
Rip fence digital display
--
Safety bar
standard
Hanging type control panel
standard
Rapid clamp
Optional
Tool frame
Standard
Dust collection system
Main chanel 5", luxurious 3"
