Panel Saw

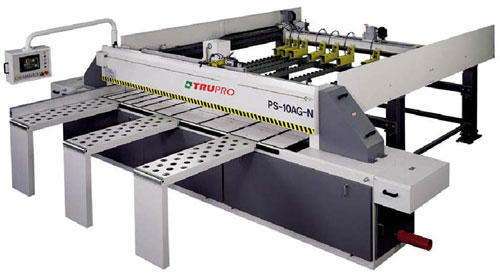

PS-5AG-N
Heavy-Duty Computerized Panel Saw

  • Model PS-5AG-N PS-8AG-N PS-10AG-N PS-12AG-N PS-14AG-N
    Max. depth of cut 70 / 95mm 70 / 95mm 70 / 95mm 70 / 95mm 70 / 95mm
    Max. length of cut 1700mm 2700mm 3200mm 3800mm 4200mm
    Saw blade drive motor 15HP 15HP 15HP 15HP 15HP
    Saw carriage feed motor 2HP 2HP 2HP 2HP 2HP
    Table hoist motor 1/2HP 1/2HP 1/2HP 1/2HP 1/2HP
    Pusher motor AC-SERVO 1 KW AC-SERVO 1 KW AC-SERVO 1 KW AC-SERVO 1 KW AC-SERVO 1 KW
    Pusher feed speed 40M/min. 40M/min. 40M/min. 40M/min. 40M/min.
    Saw carriage feed speed 0~60M/min. 0~60M/min. 0~60M/min. 0~60M/min. 0~60M/min.
    Working air pressure 5.5~6 kg/cm2 5.5~6 kg/cm2 5.5~6 kg/cm2 5.5~6 kg/cm2 5.5~6 kg/cm2
    Air consumption 35~40 L/min. 35~40 L/min. 35~40 L/min. 35~40 L/min. 35~40 L/min.
    Dust collection requirement 20~25 M3/sec 20~25 M3/sec 20~25 M3/sec 20~25 M3/sec 20~25 M3/sec
    Main saw blade diameter 14" / 16" 14" / 16" 14" / 16" 14" / 16" 14" / 16"
    Scoring saw blade diameter 180mm 180mm 180mm 180mm 180mm
    Main saw arbor 1" 1" 1" 1" 1"
    Scoring saw arbor 1" 1" 1" 1" 1"
    Packing size (cm) 429x160x202 and 270x66x147 530x160x202 and 376x66x147 580x160x202 and 430x66x147 650x160x202 and 480x66x147 710x160x180 and 430x66x147
    Weight Net 3850kgs Gross 4150kgs Net 4050kgs Gross 4350kgs Net 4182kgs Gross 4562kgs Net 4315kgs Gross 4745kgs Net 5406kgs Gross 5856kgs
