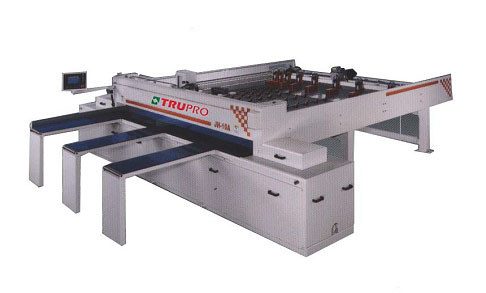

Panel Saw

PS-8A / PS-10A / PS-12A
Computerized Panel Saw

  • Features:

    Variable feed speed of saw carriage:
    • The saw carriage feed forward speed is controlled by a high performance frequency inverter for variable speed change. This makes the machine ideal for various cutting conditions.
    Floating Tables:
    • The floating tables employ high pressure blower for supplying powerful air to floating tables. The high pressure floating features increases heavy loading capacity of the floating tables. Effortless panel infeed is achieved by means of light pushing.
    • Floating tables are standard equipment.
    Shortened distance between clamps and cutting path:
    • The pressure beam is specially designed. The pressure plates on the pressure beam have slots allowing clamps close to cutting path.
    • Minimum distance between clamp and cutting path is 41 mm. The benefit is you get full utilization of panel and reduced material waste.
    Side pressure device:
    • The side pressure device automatically pushes panels against the fence. It provides high squareness accuracy for panel cutting.
    • The side pressure device travel is driven by an independent motor. The entire motions of side pressing are computer controlled.
    Saw carriage driven by rack/gear:
    • The saw carriage is driven by a 2HP motor and transmitted through gear and rack mechanism.
    • The outstanding transmission design assures smooth feed motions even under heavy cutting condition.
    High positioning accuracy of feed servo motor drive
    • The feed system is driven by a Japan Mitsubish servo motor, that exhibits outstanding features, such as fast motion and high positioning accuracy. This results in high accuracy of cutting sizes.
    Automatic lubricator:
    • The linear guide ways on both sides of the feed system are automatically lubricated by an automatic lubricator.
    • The automatic lubrication not only ensures smooth feed motions, but also prevents linear guide ways from damage due to lack of lubrication oil.
    Pressure beam elevates synchronously:
    • The pressure beam elevation is driven by air cylinders combined with transmission by gear/rack mechanism.
    Computer controller:
    • Colorful touch sensing screen features convenient and fast program editing and easy operations.
    • 200 sets of programs memory capacity for cutting various sizes.
  • Model PS-8A PS-10A PS-12A
    Cutting length 2600 mm 3100 mm 3700 mm
    Cutting thickness 80 mm
    (Optional 100 mm)    		 80 mm
    (Optional 100 mm)    		 80 mm
    (Optional 100 mm)
    Main motor 15 HP
    (Optional 18 HP)    		 15 HP
    (Optional 18 HP)    		 15 HP
    (Optional 18 HP)
    Saw carriage drive motor 2 HP 2 HP 2 HP
    Feed motor 1 KW(servo) 1 KW(servo) 1 KW(servo)
    Cutting speed 5~60 m/min 5~60 m/min 5~60 m/min
    Feed speed(variable) 50 m/min 50 m/min 50 m/min
    Floating motor 3 HP 3 HP 3 HP
    Floating table 400×1200mm×3set 400×1200mm×3set 400×1200mm×3set
    Side pressure motor 90 W 90 W 90 W
    Main sawblade Blade dia. Ø355 mm
    (Optional 405 mm)    		 Ø355 mm
    (Optional 405 mm)    		 Ø355 mm
    (Optional 405 mm)
    Arbor dia. Ø1" Ø1" Ø1"
    Speed 4400 rpm 4400 rpm 4400 rpm
    Scoring sawblade Blade dia. Ø180 mm×3.2~4.0 mm Ø180 mm×3.2~4.0 mm Ø180 mm×3.2~4.0 mm
    Arbor dia. Ø1" Ø1" Ø1"
    Speed 6200 rpm 6200 rpm 6200 rpm
    Air pressure 5~6 kg/cm2 5~6 kg/cm2 5~6 kg/cm2
    Machine dimensions 5145×4700×1700 mm 5745×5300×1700 mm 6345×5900×1700 mm
    N.W / G.W 3738 / 3938 kg 3938 / 4138 kg 4138 / 4338 kg
    Packing size 20' container 20' container 40' container
