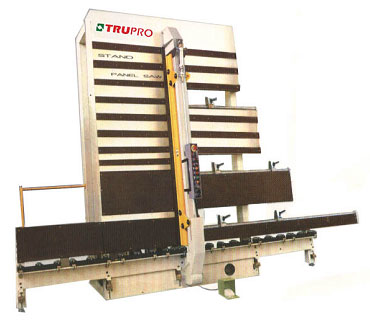

Panel Saw
PS-130-P / PS-190-P / PS-250-P
Wall Saw (P Series)
FEATURES:
- The model is a versatil machine which provides the same qualities as the conventional panel saws machines plus the advantage of the vertical position which requires less operative spaces.

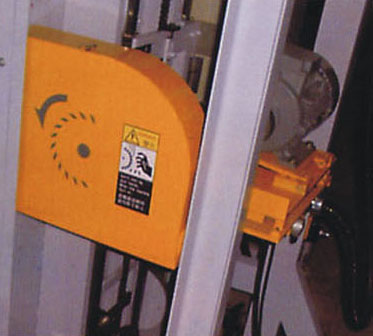

The saw carriage was moved for up and down

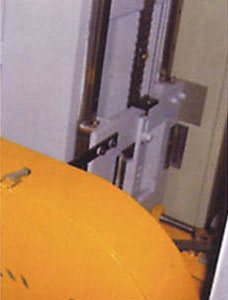

High linear guide-way:The saw carriage adopt high linear guide-way of precision
.jpg)
Manual Ajust
Model PS-130-P PS-190-P PS-250-P Cutting length 1300 mm 1900 mm 2500 mm Cutting thickness 60 mm 60 mm 60 mm Main shaft motor 5 HP(7.5 HP) 5 HP(7.5 HP) 5 HP(7.5 HP) Moving saw motor 1 HP 1 HP 1 HP Cutting speed 5-300 M/min 5-300 M/min 5-300 M/min Main sawblade size 305×3.0×25.4 mm 305×3.0×25.4 mm 305×3.0×25.4 mm Machine size 3260×1200×2300 mm 4000×1300×2900 mm 4800×1400×3500 mm N.W 950 kg 1200 kg 1600 kg
