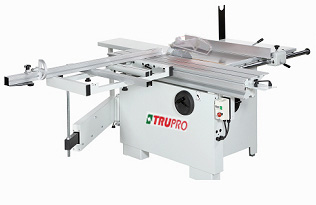

Panel Saw

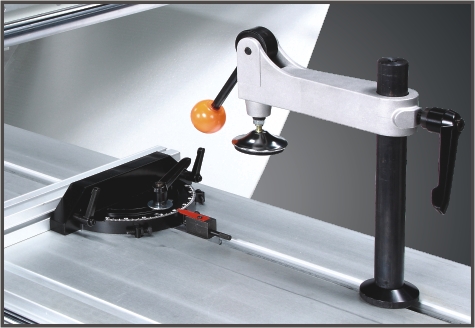

Quick and secure locking wood pressers are standard for customer use
Miter fence with 0 degree to 45 degree adjustment for small cutting job(Optional)

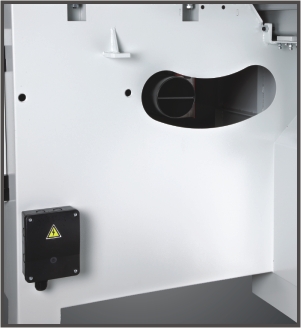

Dust chute
Specifications:
MODEL
PS-30 1600mm
PS-30 2200mm
Sliding table dimension
1600x315
2200x360
Cast Iron table
548x896mm
548x896mm
Extension table (rear)
455x446mm
455x446mm
Extension table (front)
320x830mm
320x830mm
Table size
1003x1726mm
1003x1726mm
Round rail
φ40
φ40
305mm (355mm)
305mm (355mm)
Main saw bore
30mm
30mm
Max. cutting height at 90°
90mm(115mm)
90mm(115mm)
Max. cutting height at 45°
64mm(70mm)
64mm(70mm)
Main motor power (3ph)
5 HP (3.75 kW)
5 HP (3.75 kW)
Main blade speed
4000rpm
4000rpm
Scoring saw blade
120mm
120mm
Scoring saw blade bore
20mm
20mm
Scoring blade motor power
1 HP (0.75kw)
1 HP (0.75kw)
Scoring blade speed
8000rpm
8000rpm
Cutting width
835mm (1250mm optional)
1250mm
Cuting width adjustment
Manual
Manual
Manual (0°~ 45°)
Manual (0°~ 45°)
Manual
Manual
Scoring saw height adjustment
Manual
Manual
Saw guard
Simple (overhead guard as option)
Simple (overhead guard as option)
Crosscut fence
Manual
Manual
Dust collection system
120/60mm
120/60mm
N.W./G.W./MEAS.: (Machine)
410/510kgs (1400x1100x1060mm)
410/510kgs (1400x1100x1060mm))
N.W./G.W./MEAS.: (Sliding table)
60/66 kgs (1700x470x240mm)
63/70 kgs (2300x470x240mm)
N.W./G.W./MEAS. (Overhead control panel)
28/32 kgs (1000x900x140mm)
28/32 kgs (1000x900x140mm)
Ctn QTY
16/32sets
16/32sets
