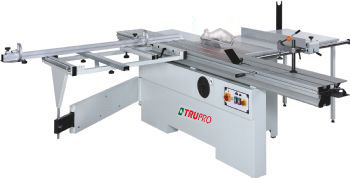

Panel Saw
Specifications:
MODEL
PS-305 2600mm
PS-305 3200mm
Sliding table dimension
2600x360
3200x360
Cast Iron table
548x896mm
548x896mm
Extension table (rear)
952x896mm
952x896mm
Extension table (front)
320x830mm
320x830mm
Table size
1500x1726mm
1500x1726mm
Round rail
Ø40
Ø40
Main saw blade(Max.)
305mm(355mm)
305mm(355mm)
Main saw bore
30mm
30mm
Max. cutting height at 90°
90mm(115mm)
90mm(115mm)
Max. cutting height at 45°
62mm(70mm)
62mm(70mm)
Main motor power (3ph)
5 HP (3.75 kW)
5 HP (3.75 kW)
Main blade speed
4,000rpm
4,000rpm
Scoring saw blade
120mm
120mm
Scoring saw blade bore
20mm
20mm
Scoring blade motor power
1 HP (0.75kw)
1 HP (0.75kw)
Scoring blade speed
8,000rpm
8,000rpm
Cutting width
1300mm
1300mm
Main saw blade tilting adjustment
Manual (0°~ 45°)
Manual (0°~ 45°)
Saw guard
Simple (overhead guard as option)
Simple (overhead guard as option)
Dust collection system
120/60mm
120/60mm
N.W./G.W./MEAS.: (Machine)
500/600kgs (2,100x1,100x1,120mm)
520/620kgs (2,100x1,100x1,120mm)
N.W./G.W./MEAS.: (Sliding table)
73/87kgs (2,610x425x225mm)
80/103kgs (3300x430x220mm)
N.W./G.W./MEAS. (Overhead control panel)
28/32kgs (1,000x900x140mm)
28/32kgs (1,000x900x140mm)
Ctn QTY
8/19 sets
8/19 sets
.jpg)
Machine will be supplied with new type blade guard from Nov. 2009 on
(Main saw blade doesn't included)
