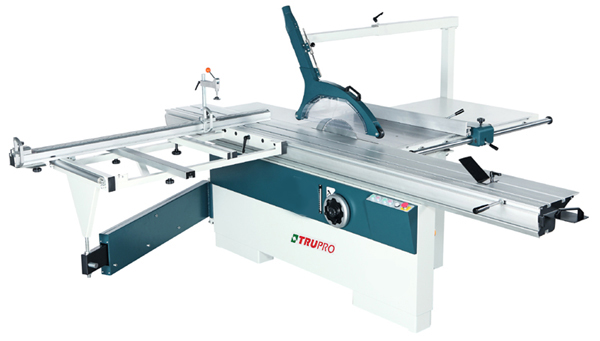

Panel Saw

Model

PS-401M

PS-401

Main saw blade tilting adjustment

Manual

Manual(0^o~45^o)

Main saw height adjustment

Manual

Motorized

Scoring saw adjustment

Manual

Manual

Model

PS-401

Sliding table dimension

3200x360mm

Cast Iron table

548x896mm

Extension table (rear)

952x896mm

Extension table (front)

830X320mm

Table size

1500x1726mm

Round rail

φ40mm

Main saw blade

φ 400 (16'')

Main saw bore

ψ30mm

Max. cutting height at 90°(355mm)

105

Max. cutting height at 45°(355mm)

70

Main motor power (3ph)

7.5 HP (5.5 Kw) 3PH

Main blade speed

3,000/ 4,000/ 5,000 rpm

Scoring saw blade

120 mm

Scoring saw blade bore

20 mm

Scoring blade motor power

1 HP (0.75 kw)

Scoring blade speed

8,000 rpm

Cuting width

1300mm

Cuting width adjustment

Manual

Main saw blade tilting adjustment

Manual(0^o~45^o)

Main saw height adjustment

Motorized

Scoring saw adjustment

Manual

Saw guard

Simple (Overhead guard is optional)

Dust collection system

120/ 60 mm

N.W./G.W./MEAS.: (Machine)

620/720kgs (2100x1100x1120mm)

N.W./G.W./MEAS.: (Sliding table)

80/103kgs (3320x430x240mm)

N.W./G.W./MEAS.: (Overhead guard B type)

39/45kgs (1200x730x230mm)

Ctn QTY

8 / 19 sets
