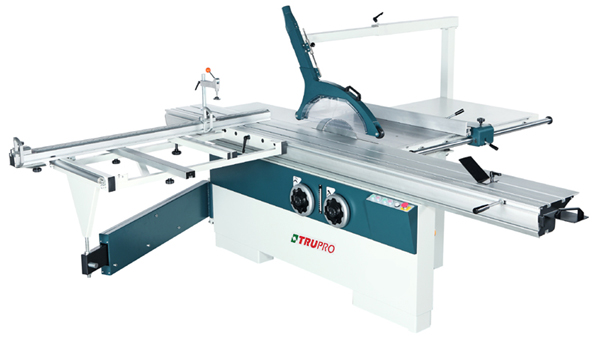

Panel Saw
Quick and secure locking wood pressure, miter fence with 0° to 45° adjustment. (optional)
Overhead guard is option
Model
PS-401M
PS-401
Main saw blade tilting adjustment Manual
Manual(0o~45o)
Main saw height adjustment Manual
Motorized
Scoring saw adjustment
Manual
Manual
Model
PS-401M
Sliding table dimension
3200x360mm
Cast Iron table
548x896mm
Extension table (rear)
952x896mm
Extension table (front)
830X320mm
Table size
1500x1726mm
Round rail
φ40mm
Main saw blade φ 400 (16'')
Main saw bore
ψ30mm
Max. cutting height at 90°(355mm)
105
Max. cutting height at 45°(355mm)
70
Main motor power (3ph)
7.5 HP (5.5 KW)
Main blade speed
3000/4000/5000rpm
Scoring saw blade
φ 120
Scoring saw blade bore
ψ20mm
Scoring blade motor power
1 HP (0.75kw)
Scoring blade speed
8000 rpm
Cuting width
1265mm
Cuting width adjustment
Manual
Main saw blade tilting adjustment Manual /
Main saw height adjustment Manual /
Scoring saw adjustment
Manual
Saw guard
Simple (Overhead guard is optional)
Dust collection system
120/60mm
N.W./G.W./MEAS.: (Machine)
620/720kgs(2100x1100x1120mm)
N.W./G.W./MEAS.: (Sliding table)
80/103kgs (3320x430x240mm)
N.W./G.W./MEAS.: (Overhead guard B type)
39/45kgs (1200x730x230mm)
Ctn QTY
8/19sets
