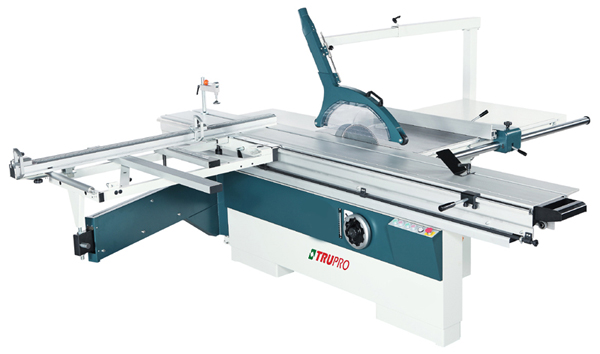

Panel Saw
Overhead saw blade guard
(optional)
Standard saw blade guard:
This machine can fit a max. saw blade dia.
400mm, adjustable riving knives included for various blade dia., speeds are easily switchable between 3000, 4000 and 5000 rpm for different materials cutting.
Hold down:
Quick and secure locking wood pressure.
Miter fence (Optional):
User-friendly design with 0~45° adjustment.
Carriage:
The sliding table is made out of a heavily ribbed aluminum extrusion which is anodized to eliminate the making of your panel and ensure a long surface life.
Model
PS-405M
PS-405
PS-405A
Main saw blade tilting adjustment Manual
Manual(0o~45o)
Motorized (0°~ 45°)
Main saw height adjustment Manual
Motorized
Motorized
Scoring saw adjustment
Manual
Manual
Manual
Model
PS-405
Sliding table dimension
3,200 x 385 mm
Cast Iron table
548x896mm
Extension table (rear)
952x896mm
Extension table (front)
830X320mm
Table size
1500x1726mm
Round rail
φ50mm
Main saw blade φ 400 (16'')
Main saw bore
ψ30mm
Max. cutting height at 90°(355mm)
105
Max. cutting height at 45°(355mm)
70
Main motor power (3ph)
7.5 HP (5.5 Kw) 3PH
Main blade speed
3,000/ 4,000/ 5,000 rpm
Scoring saw blade
φ 120
Scoring saw blade bore
ψ20mm
Scoring blade motor power
1 HP (0.75 kw)
Scoring blade speed
8,000 rpm
Cuting width
1,300 mm
Cuting width adjustment
Manual
Main saw blade tilting adjustment Manual(0o~45o)
Main saw height adjustment Motorized
Scoring saw adjustment
Manual
Saw guard
Simple (Overhead guard is optional)
Dust collection system
120/ 60 mm
N.W./G.W./MEAS.: (Machine)
670/770kgs (2100x1100x1120mm)
N.W./G.W./MEAS.: (Sliding table)
158/213kgs (3390x490x370mm)
N.W./G.W./MEAS.: (Overhead guard B type)
39/45kgs (1200x730x230mm)
Ctn QTY
7/ 17 sets
