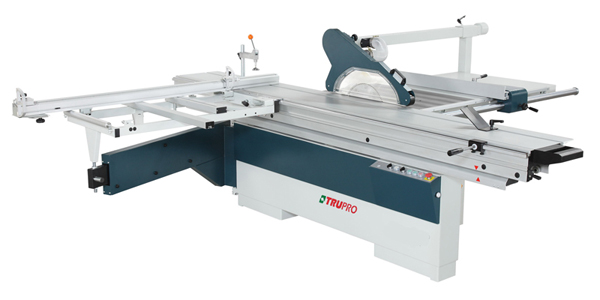

Panel Saw
Overhead saw blade guard
(optional)
Standard saw blade guard:
This machine can fit a max. saw blade dia.
400mm, adjustable riving knives included for various blade dia., speeds are easily switchable between 3000, 4000 and 5000 rpm for different materials cutting.
Hold down:
Quick and secure locking wood pressure.
Miter fence (Optional):
User-friendly design with 0~45° adjustment.
Carriage:
The sliding table is made out of a heavily ribbed aluminum extrusion which is anodized to eliminate the making of your panel and ensure a long surface life.
Model
PS-405M
PS-405
PS-405A
Main saw blade tilting adjustment Manual
Manual(0o~45o)
Motorized (0°~ 45°)
Main saw height adjustment Manual
Motorized
Motorized
Scoring saw adjustment
Manual
Manual
Manual
Model
PS-405A
Sliding table dimension
3,200x385 mm
Cast Iron table
600 x 1,000 mm
Extension table (rear)
880x1000mm
Extension table (front)
600x840mm
Table size
1480x1840mm
Round rail
φ50mm
Main saw blade φ 400 (16'')
Main saw bore
ψ30mm
Max. cutting height at 90°(355mm)
105
Max. cutting height at 45°(355mm)
70
Main motor power (3ph)
7.5 HP (5.5 Kw)
Main blade speed
3,000/ 4,000/ 5,000
Scoring saw blade
φ 120
Scoring saw blade bore
ψ20mm.
Scoring blade motor power
1 HP (0.75 kw)
Scoring blade speed
8,000
Cuting width
1,300 mm.
Cuting width adjustment
Manual
Main saw blade tilting adjustment Motorized
Main saw height adjustment Motorized
Scoring saw adjustment
Manual
Saw guard
Simple (Overhead guard is optional)
Dust collection system
120/ 60 mm
N.W./G.W./MEAS.: (Machine)
732/927kgs(2230x1300x1130mm)
N.W./G.W./MEAS.: (Sliding table)
158/213kgs (3390x490x370mm)
N.W./G.W./MEAS.: (Overhead guard B type)
48/77kgs (1690x1110x250mm)
Ctn QTY
6/12 sets
