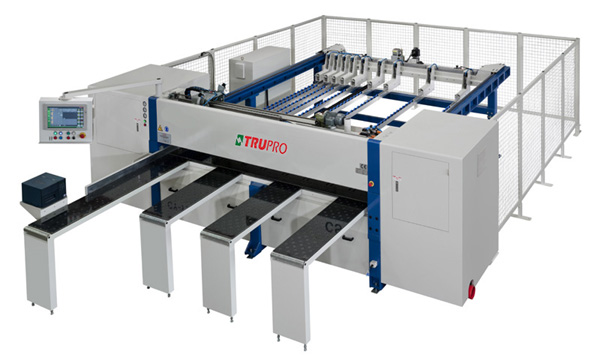

Panel Saw

 Independent saw carriage is driven by rack and pinion and move smoothly and stably along with linear guide, to keep sharp cutting quality.

 Main saw pneumatic quick change is designed to shorten the changing saw time and save working time.

 Scoring saw auto adjustment is designed to speed up changing saw time and make adjustment process smarter and easier.

 Pusher is controlled by servo motor to ensure precise positioning.

 Pusher is driven smoothly by two sides rack and pinion, move stably along with two sides linear guide way.

 Magnetic ruler is designed as double confirmation of the pusher positioning accuracy.

 Two auto side aligners keep the cutting angle as 90 degrees.

 Heavy duty gripper type and clamp open height is 100 mm.

 Floating working tables are designed to prevent the panel from scratched by dusts.

 15” industrial touch screen panel PC is equipped with highly intelligent cutting technology software, making operation simple and easy.

 Front floating tables help to load panels up to machine easily.

 Label printer is available upon request and data could be printed out as panel is cut.
