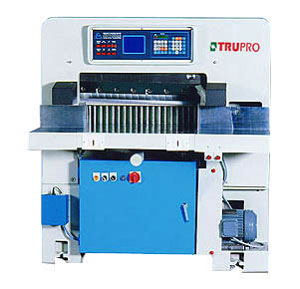

Paper Handling Machine
LG-520C / LG-660C / LG-720C
Paper Cutting Machine
- Machine seat is constructed & combined by high strength casting operates stably & cuts exactly. Robust construction ensures stable operation and exactly cut off.
- Cutting operation by warm wheel shaft. Cutting knife is driven by worm gear; providing excellent cutting accuracy.
- Specially designed powerful electromagnetic clutch avoids unwanted second-time knife cutting.
- 9800-point memory allows for free size setting to increase cutting capacity.
- Special sizes and new system sizes can be keyed-in during operation, convenient for the cutting of all kinds of paper.
- ydraulic operation assures quiet cutting.
Model LG-520C LG-660C LG-720C Cutting Thickness 120 mm 120 mm 120 mm Cutting Width 520 mm 660 mm 720 mm Cutting Length 520 mm 660 mm 720 mm Front Table Length 540 mm 540 mm 540 mm Table Height 820 mm 820 mm 820 mm Total Machine Length 1620 mm 1720 mm 1780 mm Machine Width 1410 mm 1510 mm 1570 mm Machine Height 1470 mm 1470 mm 1470 mm Electrical Supply Optional Optional Optional Blade Motor 2 HP 2 HP 2 HP Clamp Motor 2 HP 2 HP 2 HP Paper Feeding Motor 1 HP 1 HP 1 HP Air Table Motor* 1/4 HP 1/4 HP 1/4 HP Net Weight (kg) 1200 1500 1600 Measurement (mm) 1800x1600x1600 1900x1700x1600 2000x1800x1600
