Paper Handling Machine

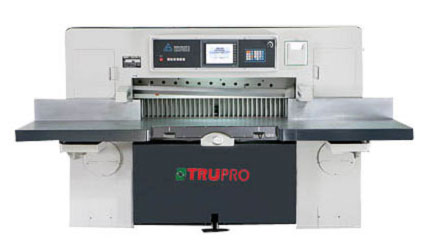

LG-1160CD / LG-1210CD / LG-1370CD / LG-1420CD / LG-1550CD / LG-1600CD / LG-1800CD
Paper Cutting Machine
- Machine seat is constructed & combined by high strength casting operates stably & cuts exactly. Robust construction ensures stable operation and exact cut off.
- Hydraulic system is devised with double-pull type and two-step hydraulic device.
- Operates by electro-magnetic clutch & brake.
- Dual worm gear, dual arm cutting design for speedy and quick cutting.
- New cutting size can be added to memory without changing the entire program.
- Complete safety and protection device for electrical appliances security to operate, no harm for the operator.
- Suitable for cutting paper, card, board, rubber, cork, veneer, leather and plastic foils.
Model LG-1160CD LG-1210CD LG-1370CD LG-1420CD Cutting Thickness 160 mm 160 mm 160 mm 160 mm Cutting Width 1160 mm 1210 mm 1370 mm 1420 mm Cutting Length 1160 mm 1210 mm 1370 mm 1420 mm Front Table Length 840 mm 840 mm 840 mm 840 mm Table Height 900 mm 900 mm 900 mm 900 mm Total Machine Length 2640 mm 2690 mm 2830 mm 2880 mm Machine Width 2860 mm 2910 mm 3065 mm 3120 mm Machine Height 1650 mm 1650 mm 1650 mm 1650 mm Electrical Supply Optional Optional Optional Optional Net Weight 4000 kg 4200 kg 4800 kg 4800 kg Blade Motor 3 HP 3 HP 5 HP 5 HP Clamp Motor 2 HP 2 HP 2 HP 2 HP Paper Feeding Motor 1 HP 1 HP 1 HP 1 HP Air Table Motor* 1/2 HP 1/2 HP 1 HP 1 HP
Model LG-1550CD LG-1600CD LG-1800CD Cutting Thickness 160 mm 160 mm 160 mm Cutting Width 1550 mm 1600 mm 1800 mm Cutting Length 1550 mm 1600 mm 1800 mm Front Table Length 840 mm 840 mm 840 mm Table Height 900 mm 900 mm 900 mm Total Machine Length 3010 mm 3060 mm 3260 mm Machine Width 3250 mm 3300 mm 3500 mm Machine Height 1650 mm 1650 mm 1650 mm Electrical Supply Optional Optional Optional Net Weight 5100 kg 5100 kg 5500 kg Blade Motor 3 HP 5 HP 7 1/2 HP Clamp Motor 2 HP 2 HP 2 HP Paper Feeding Motor 1 HP 1 HP 1 HP Air Table Motor* 1/2 HP 1 HP 1 1/2 HP
