Picture Frame Making Machine

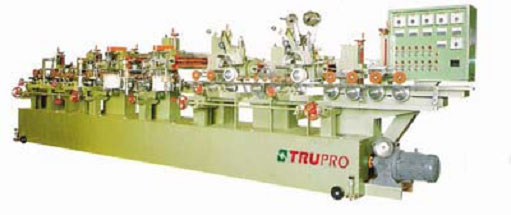

FRM-007-6A
Multi-Angle Six Heads Hot Stamping Machine
(Special rotate cutting machine, plastic strip PVC and PS forming strip)
  • Model FRM-007-6A
    Horse power 16 HP
    Work capacity 10~120 mm
    Feeding variable motor 3 HP
    Feeding variable motor speed 5~20 m/min
    Hot stamping motor 15 W×6
    Foil take up motor 15 W×6
    Inclinable angle 0~90° ×6
    Max. gold foul extension 250 mm
    Axle center Ø1"
    Automatic temperature control 0~400° ×6
    Heat exhaustion 1.5 KW×6
    Packing dimensions L6000×W1330×H1820 mm
    N.W. 2400 kgs
    G.W. 2800 kgs
