Planer-Single

Model

WP-1300V

Max. working size

1350×200 mm

Min. distance between rollers

465 mm

Cutting way

Milling vertically

Feed speed

4~11 m/min (50Hz)

4.5~14 m/min (60Hz)

Motor

Main spindle

30 HP×2pcs

Feeding

5 HP×1pcs

Up and down.

2 HP×1pcs

Spindle revolution

5300rpm

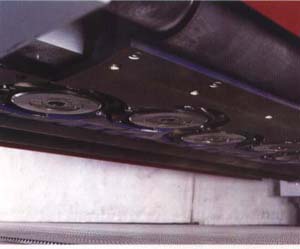

Size of vertical cutter (Dia. ×Bore)

Ø 180×Ø 25.4×8pcs

Height of working table

900 mm

Suction hood

Ø173×3 , Ø123×1

Machine size

2975×2200×1930 mm

Packing size

3240×2340×2010 mm

N.W. / G.W.

4500 / 5000 kgs
