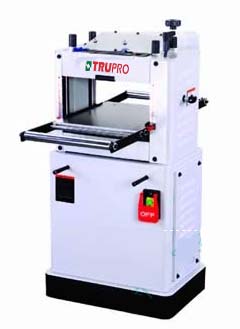

Planer-Single
l Cast iron table and base reduce vibration.
l Four precision grounded columns provide extra stability when raising and lowering the table.
l Powerful 1.5HP motor is totally enclosed fan-cooled.
l Table is accurately positioned with an easy-to-use crank handle.
l Two feeding speed increase the versatility of applications.
l Rubber-coated infeed and outfeed rollers are fully adjustable
lAn angled 4” dust port designed to efficiently remove all shavings and sawdust as well as keep your dust collection hose out of the way of your workpiece.
Model
818-0206
Motor
1.5 HP
Table(L×W)
457×330 mm
Cutterhead speed
5000rpm
Number of knives
3
Cutterhead Dia.
68 mm
Cutting capacity
Min. thickness:2.1mm
Max. width of stock:13"(330mm)
Max. Depth of cut: 5.1mm
Max. stock thickness:6"(152mm)
Feed rate:12FPM, 20FPM
Feed rolls
Infeed rolls: polyurethane
Outfeed rolls: polyurethane
