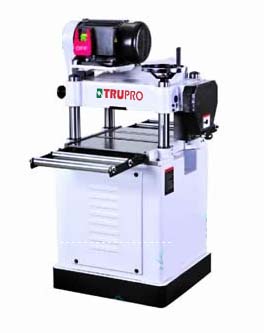

Planer-Single
lIt’s “motor on top” design saves you time by eliminating the need to move infeed and outfeed rollers every time you made a cut.
l Oil-bath gear box takes power for the feed rollers directly from the cutterhead.
l Rugged chain and sprocket drive provides positive feeding and long running life.
lSpiral serrated steel infeed roller and polyurethane outfeed roller keep stock moving smoothly and efficiently.
lFour precision grounded columns provide extra stability when raising and lowering the table.
Model
818-0205
Motor
3 HP
Table(L×W)
505×380 mm
Cutterhead speed
5000rpm
Number of knives
3
Cutterhead Dia.
72 mm
Cutting capacity
Min. thickness:1.1mm
Max. width of stock:15"(381mm)
Max. Depth of cut: 4/25"(4.1mm)
Max. stock thickness:6"(152mm)
Feed rate:16FPM, 20FPM
Feed rolls
Infeed rolls: Solid serrated steel
Outfeed rolls: Solid serrated steel
