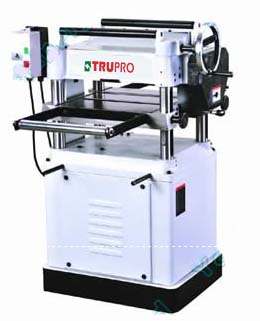

Planer-Single
l Table adjusts quickly and accurately with a handwheel through a positive gear drive system.
l Cast iron and steel construction for added stability and durability.
lSteel feed rollers, serrated infeed and smooth outfeed, allow for 1/8” depth of cut.
l Cutterhead features jackscrews with springs to make knife adjustment easy and accurate.
l The gearbox features and automatic chain tension.
l Two steel work returns rollers on top of the machine to make transferring your wood back easier.
l Table locks to assure no table movement while machine is in use.
Model
818-0204
Motor
2.5 HP
Table(L×W)
453×406 mm
Cutterhead speed
5000rpm
Number of knives
3
Cutterhead Dia.
72 mm
Cutting capacity
Min. thickness:1.1mm
Max. width of stock:16"(406mm)
Max. Depth of cut: 4/25"(4.1mm)
Max. stock thickness:8"(204mm)
Feed rate:16FPM, 20FPM
Feed rolls
Infeed rolls: Solid serrated steel
Outfeed rolls: Solid serrated steel
