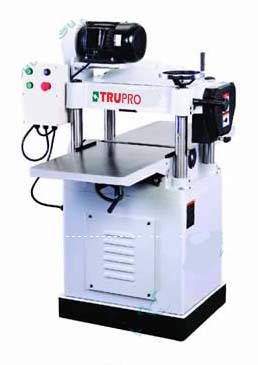

Planer-Single
l It’s “motor on top” design saves you time by eliminating the need to move infeed and outfeed rollers every time you made a cut.
l Oil-bath gear box takes power for the feed rollers directly from the cutterhead.
lSpiral serrated steel infeed roller and polyurethane outfeed roller keep stock moving smoothly and efficiently.
l Four precision grounded columns provide extra stability when raising and lowering the table.
l An angled 4” dust port designed to efficiently remove all shavings and sawdust as well as keep your dust collection hose out of the way of your workpiece.
Model
818-0202
Motor
Upper :3 HP, Lower: 2HP
Table(L×W)
655×406 mm
Cutterhead speed
5000rpm / 48000rpm
Number of knives
Upper:3, Lower:3
Cutterhead Dia.
Upper / Lower: 73 mm
Cutting capacity
Min. thickness:3mm
Max. width of stock:16"(406mm)
Max. Depth of cut:Upper:1/4"(6mm)
Lower: 1/12"(2mm)
Max. stock thickness:6"(152mm)
Feed rate:16FPM, 20FPM
Feed rolls
Infeed rolls: Solid serrated steel
Outfeed rolls: polyurethane
