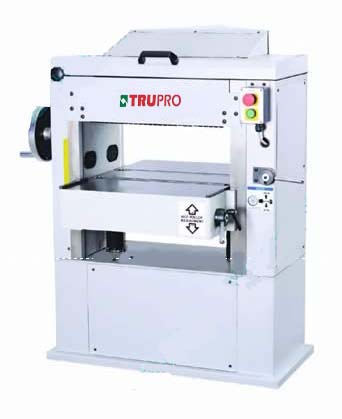

Planer-Single
l Pressure mechanism with safety guard for maximum safety, pressure bar can be individually adjusted.
l Spiral serrated steel infeed/outfeed roller keep stock moving smoothly and efficiently.
l Large cast iron table and side panel for solid support of stock, table surface is precision ground and polished.
lThe micro adjustable bed rollers lever quicklyraise and lower the bed rollers.
lAnti-kickback fingers provided at infeed side to prevent stock kickback.
Model
818-0201F
Motor
5 HP
Table(L×W)
710×508 mm
Cutterhead speed
5000rpm
Number of knives
3
Cutterhead Dia.
78 mm
Cutting capacity
Min. thickness:3mm
Max. width of stock: 20"(508mm)
Max. Depth of cut:1/5"(5mm)
Max. stock thickness:8"(204mm)
Feed rate:16FPM, 20FPM
Feed rolls
Infeed rolls: Solid serrated steel
Outfeed rolls: Solid serrated steel
