Planer-Single

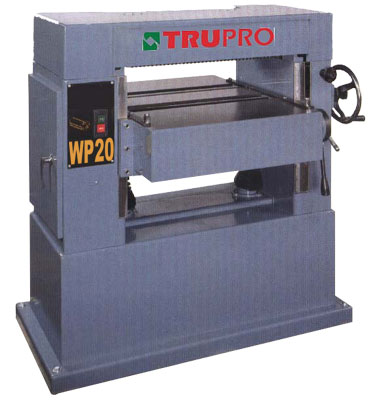

WP-20 / WP-24
20" Auto Planer
l Uniformly thickness smooth cutting.
l Quick adjustment equipment for quick adjusting table rolls while encountering with unusual rough bottom workpieces.
l Anti-kick back equipment gives operator greater safety.
l Up to 8” thickness large cutting capacity.
l Sectional in-feed roll, chip breaker.
l 4-knife cutter-head for more smooth performance.
l Easy operation knife setting gage.
l Magnetic switch control.
l 6” dia. Dust hood outlet.
Model WP-20 / WP-24 Cutting Motor 5HP / 7.5HP CAPACITY Max. width of workpiece 508mm (20") /610mm(24") Max. thickness of workpiece 203mm (8") Max. depth of cut 8 mm (5/16") Min. length of workpiece 200mm (8") CUTTERHEAD Number of knives 3pcs Diameter 80mm (3-3/16") Cutting circule 84mm (3-3/8") Speed 5200 R.P.M. TABLE SIZE Width 562mm (22-5/32") Length 713mm (28") FEED ROLLS In-feed (sectional) 76mm-one (3") Out-feed (solid) 60mm-one (2-3/8") Table roll (solid) 72mm two (2-7/8") Feed rate 34-5/16" Overall dimension(L x W x H): 1108 x 762 x 1136mm(44 x 30 x 45") Packing dimension(L x W x H): 1280 x 800 x 1200mm(51 x 32 x 48") Net weight: 420kgs (924lbs) Gross weight: 520kgs (1144lbs)
