Planer-Single
l Power raising worktable by 1/2HP separate motor to achieve high efficient operation.
l Worktable amounts on 4 strong raising screws.
l Quick adjustment equipment for quick adjusting table rolls while encountering with unusual rough bottom workpieces.
l Variable feed speed system actuated by separate 1HP motor to meet the needs of different kind of material for powerful feeding and greater safety of operation.
l Anti-kick back equipment gives operator greater safety.
l Up to 300mm thickness large cutting capacity.
l Sectional in-feed roll, chip breaker.
l 4-knife cutter-head for more smooth performance.
l Easy operation knife setting gage.
l 6” dia. Nozzle exhaust hood.
l Two upper outfeed rolls.
Optional equipment:
l Grinding attachment
l power table
l Increased horse power
l Digital controller

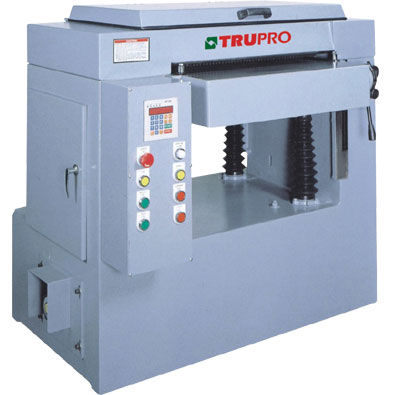

Model WP-630 Auto Planer Cutting Motor 5HP CAPACITY Max. width of workpiece 630mm (24-13/16") Max. thickness of workpiece 300mm (11-13/16") Max. depth of cut 8 mm (5/16") Min. length of workpiece 220mm (8-11/16") CUTTERHEAD Number of knives 4pcs Diameter 98mm (3-27/32") Cutting circule 102mm (4-1/64") Speed 4800 R.P.M. TABLE SIZE Width 658mm (26-31/32") Length 870mm (34-5/16") FEED ROLLS In-feed (sectional) 76mm-one (3") Out-feed (solid) 60mm-one (2-3/8") Table roll (solid) 72mm two (2-7/8") Feed rate 34-5/16" Overall dimension(L x W x H): 1305 x 960 x 1200mm(52 x 38 x 48") Packing dimension(L x W x H): 1397 x 970 x 1320mm(55 x 39 x 52") Net weight: 820kgs (1804lbs) Gross weight: 920kgs (2024lbs) Grinding attachment: 30kgs (66lbs)

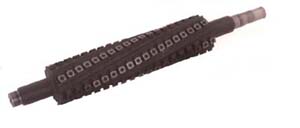

Helical cutterhead available on request
