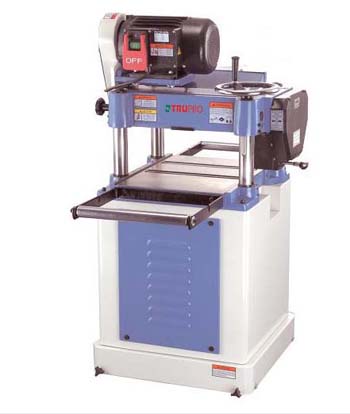

Planer-Single
l It’s “motor-on-top” design saves you time by eliminating the need to move in-feed and out-feed rollers every time you make a cut.
l Oil-bath gear box takes power for the feed rollers directly from the cutterhead.
l Rugged chain and sprocket drive provides positive feeding and long running life.
l Spiral serrated steel in-feed roller and polyurethane outfeed roller keep stock moving smoothly and efficiently.
lFour precision grounded columns provide rexta stability when raising and lowering the table.
Model
WP-405CH
WP-406CH
Motor
3 HP
3 HP
Table(L×W)
505×380 mm
505×406 mm
Cutterhead speed
5000rpm
5000rpm
Number of knives
3
3
Cutterhead Dia.
72 mm
72 mm
Cutting capacity
Min. thickness:1.1mm
Width:15"(381mm)
Depth:4.1mm
Height:6"(152mm)
Feed rate:16FPM, 20FPM
Min. thickness:1.1mm
Width:16"(406mm)
Depth:4.1mm
Height:6"(152mm)
Feed rate:16FPM, 20FPM
Feed rolls
Infeed rolls: Solid serrated steel
Outfeed rolls: Solid serrated steel
Infeed rolls: Solid serrated steel
Outfeed rolls: Solid serrated steel
