Planer-Single

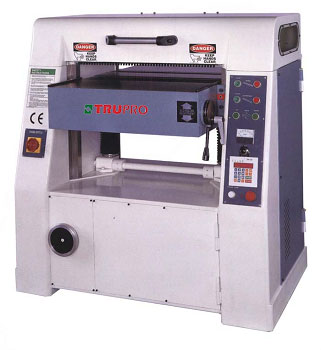

WP-DM510
Automatic Planer
- Powerful cutterhead motor.
- Variable feed speed is driven by a DC motor. Speed range 0-90 ft/min.
- Digital position controller for convenient thickness setting / automatic positioning.
- Ruggedly constructed throughout - machine weight 2,360 lbs.
- Spiral cutterhead provides high chip removal rate, superior surface finish and low noise level.
- Precision cutterhead ball bearings.
- Heavy duty cast iron table is heat treated and precision ground.
- Powered table elevation for fast and convenient thickness setting is standard.
- Additional emergency stop switch provided at back side of the machine.
- Two Ø 1-1/2" jack screws provide solid support of table.
- Corrugated sectional infeed roller has independent movement for running strip stock of varying thicknesses. Improves safety.
- Anti-kickback fingers equipped at the infeed end provide added safety for the operator.
- Feed speed and DC motor RPM meters provided on the front control panel.
- Adjustable bed rollers for planing of rough or finished lumber or glued panels.
Model WP-DM510 Table area 36"x21" (915x534mm) Cutterhead diameter 3.86" (98mm) Cutting circle 4" (101mm) Cutterhead speed Spiral 5500 rpm Stright 4500 rpm Spiral raw numbers 6 Number of straight knives 4 Knife insert size 15x15x2.5mm Feed rollers 3" (75mm) Table rollers 2-1/2" (65mm) Range of feed speed 0-25 meter/min Maximum depth of cut 5/16" (8mm) Stock thickness range 1/4"-8" (6-203mm) Maximum width of stock 20" (508mm) Cutterhead motor 10 HP Feed drive motor 1 HP Net weight 800 kgs Gross weight 900 kgs Packing dimensions 44"x40"x53" (1117x1016x1346mm) Helical cutterhead available on request
