Planer-Single
WP-926

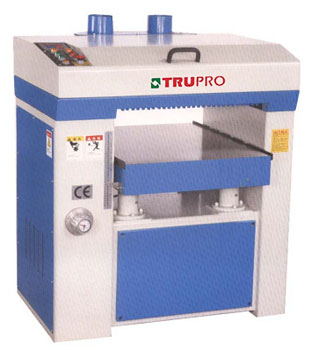

Automatic Planer
- Equipped with a digital position controller.
- Straight cutterhead is standard.
- Helical cutterhead and quick change cutterhead are optional.
- Variable feed speed through variable pulley is standard.
- Variable feed speed controlled by a frequency inverter is optional.
- Powered table elevation.
- The table is supported by 4 oversized columns.
- Automatic power off when the top cover is opened.
MODEL WP-926 Table area 660×840 mm Max. planning width 660 mm Max. planning thickness 300 mm Min. planning thickness 3 mm Max. cutting depth 9 mm Knives Straight cutterhead 4 Helical cutterhad 6Slots/168pcs Knife size Straight cutterhead 660×30×3 mm Helical cutterhad 14×14×2.0× mm Cutterhead speed 5000 rpm Cutterhead diameter 100 mm / 125 mm Cutterhead motor 10 HP Net weight / Gross weight 800kgs / 880kgs Packing size (L×W×H) 125×100×150 cm Machine dimensions(L×W×H) 115×92×135 cm Helical cutterhead available on request
