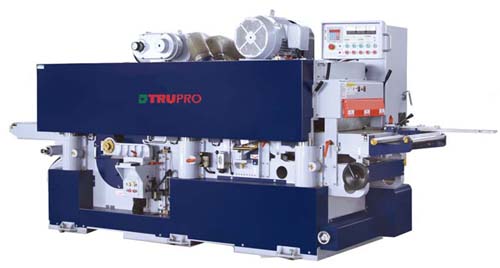

Planer-Top & Bottom
l Patented top and bottom knife replacement.
l Patented top and bottom self-aligning feed rollers ensure smoother feeding.
l Patented saw arbor design eliminates the need to dismantle bearings, making saw blade changing easier.
l Extremely high saw arbor precision.
l Fast rubber roller replacement.
Innovative cutter-head removal design
Fast sawblade replacement
Air loaded pressure rollers
Fast sectional rubber roller replacement
Optional device:

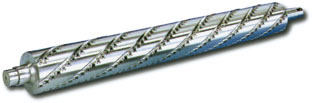

Spiral cutterheads: both the top and bottom cutterheads can be fitted with spiral (Helical) cutterheads, which provide extremely smooth and low noise cuts.
.jpg)
Model
WPP-650

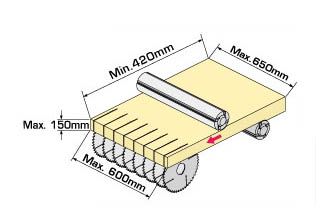

Max. width of planning
650 mm
Max. width of ripping
600 mm
Thickness of cut
12~150 mm
Min. length of cut
385 mm
Bottom spindle speed
5800 rpm
Top spindle speed
5800 rpm
Saw spindle speed
2800 rpm
Sawblade diameter (cut thickness)
Ø355(12~100), Ø405(12~120), Ø455(12~150) mm
Saw spindle diameter
Ø65 mm

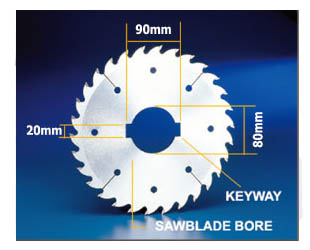

Sleeve diameter (sawblade bore diameter)
Ø80 mm
Sawblade keyway
20 mm(W)×2
Distance between keyways
90 mm
Spacing collar diameter (I.D./O.D.)
Ø80 mm/110 mm
Feed speed (Variable)
9~36 M/min
Bottom spindle drive motor
10 HP (20 HP opt.)
Top spindle drive motor
15 HP (30 HP opt.)
Saw spindle motor
50 HP (75 HP, 100HP opt.)
Feed drive motor
5 HP
Pressure roll elevation motor
2 HP
Saw elevation motor
1/2 HP
Dust hood outlet diameter
Ø 125 mm (5”×2),Ø152 mm (6”×4)
Table height from floor
890 mm
Machine dimensions (LWH)
3350×1800×1800 mm
Packing dimensions (LWH)
4020×2200×2250 mm
Net weight
4200 kgs
Gross weight
4800 kgs
