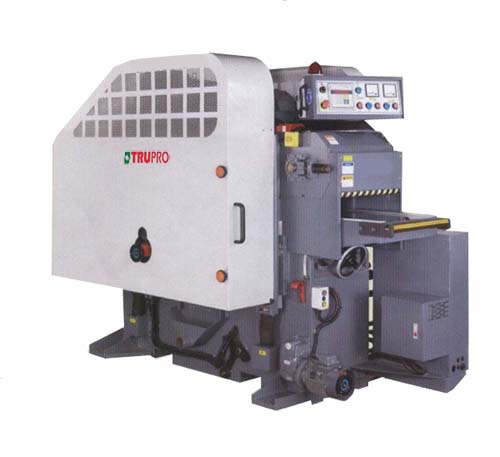

Planer-Top & Bottom

Model

WPP-400R

Max. width of cut

405 mm(16”)

Max. thickness of cut

300 mm (12”)

Min. thickness of cut

10 mm

Min. length of cut

250 mm

Knife nos. on top cutterhead

102 pcs

Knife nos. on bottom cutterhead

102 pcs

Knife sizes

TCT 15×15×2.5 mm

Cutterhead speed

5000 rpm

Variable feed speed

7~20 M/min

Dust hood outlet diameter

5”×2 , 4”×1

Table surface area

19”×86”

Top cutterhead drive motor

10 HP

Bottom cutterhead drive motor

7.5 HP

Saw motor

10 HP

Feed drive motor

2 HP

Upper mechanism elevation motor

1/2 HP

Machine dimensions

2320×1250×1830 mm

Net weight

2400 kgs

Packing dimensions

2400×1330×2070 mm

Gross weight

2600 kgs
