Planer-Top & Bottom

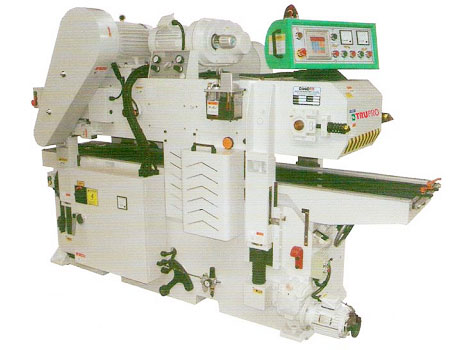

WPP-400S
Double Surface Planer (For short wood machine)
Model WPP-400S Max. width of cut 405 mm(16") Max. thickness of cut 170 mm(7") Min. thickness of cut 8 mm Min. length of cut 100 mm Knife nos. on top cutterhead 96 pcs Knife nos. on bottom cutterhead 120 pcs Knife sizes T.C.T 15×15×2.5 mm Cutterhead speed 5000 RPM Variable feed speed 7-20 m/min Dust hood outlet diameter 5" Table surface area 19"×97" Top cutterhead drive motor 7.5 HP (10 HP) Bottom cutterhead drive motor 5 HP (7.5 HP) Feed drive motor 2HP Upper mechanism elevation motor 1/2HP Machine dimensions 2600×900×1700 mm Net weight 2100 kg Packing dimensions 2650×950×1850 mm Gross weight 2300 kg
