Planer-Top & Bottom

WPP-400

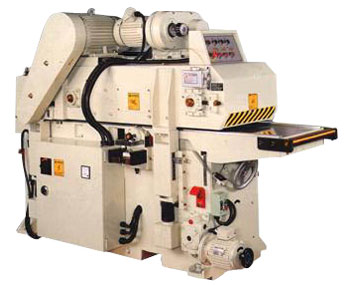

16" Double Surface Planer
  • Model WPP-400
    Maximum width of plane 405mm (16")
    Maximum height of plane 170mm (7")
    Minumum thickness of plane 8mm (7")
    Minumum length of plane 250mm
    Number of knives 4pcs
    Knife size 405x3x30mm(16"x1/8"x1-1/8")
    Cutterhead diameter 101mm dia.
    Cutterhead speed 400RPM
    RPM of stepless variable speed 7-20m/min
    Dust hood outlet 5"
    Tabled surface 19"x86"
    Top cutterhead drvie motor 10Hp
    Bottom cutterhead drive motor 7.2Hp
    Feed drive motor 2Hp
    Table elevation motor 1/2Hp
    Machine dimensions (LxWxH) 2200x900x1700mm
    Net weight 1900kg
    Gross weight 2100kg
    Packing dimensions (LxWxH) 2300x950x1850mm
