Planer Sander
36" (910mm)

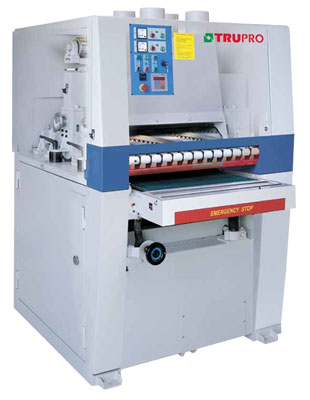

Standard Duty Spiral Cutterhead Planer Sander

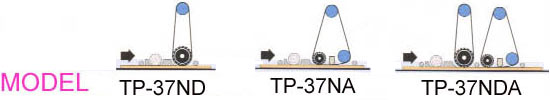

Model TP-37ND TP-37NA TP-37NDA Working width 910mm 910mm 910mm Working height 125mm 125mm 125mm Main motor standard 20, 20HP 20, 20HP 20, 20, 15HP Feed motor 2HP 2HP 3HP Table hoist motor 1/2HP 1/2HP 1/2HP Feed speeds (variable) 4-16 M/min 4-16 M/min 4-16 M/min Sanding belt size 37" x 60 " 37" x 60" 37" x 60 " Numbers of knife insert 318pcs 318pcs 318pcs Compressed air required 4 kg/cm2 4 kg/cm2 5 kg/cm2 Exhaust volume requirement 3500 M3/Hr 3500 M3/Hr 5180 M3/Hr Net weight 1500kg 1500kg 1800kg Gross weight 1900kg 1900kg 2300kg Dimensions (L x W x H) 74" x 64" x 70" 74" x 64" x 70" 87" x 64" x 70" Packing size (L x W x H) 78" x 67" x 76" 78" x 67" x 76" 90" x 67" x 76"
