Planer Sander
43" (1100mm)

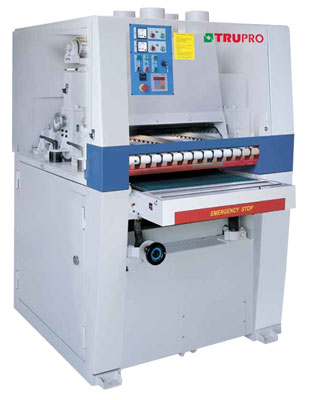

Standard Duty Spiral Cutterhead Planer Sander

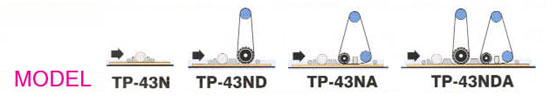

Model TP-43N TP-43ND TP-43NA TP-43NDA Working width 1100mm 1100mm 1100mm 1100mm Working height 125mm 125mm 125mm 125mm Main motor standard 20HP 20, 20HP 20, 20HP 20, 20, 15HP Feed motor 3HP 3HP 3HP 5HP Table hoist motor 1/2HP 1/2HP 1/2HP 1/2HP Feed speeds (variable) 4-16 M/min 4-16 M/min 4-16 M/min 4-16 M/min Sanding belt size X 43" x 75" 43" x 75 " 43" x 75 " Numbers of knife insert 280pcs 280pcs 280pcs 280pcs Compressed air required 4 kg/cm2 5 kg/cm2 5 kg/cm2 5 kg/cm2 Exhaust volume requirement 5180 M3/Hr 6860 M3/Hr 6860 M3/Hr 7760 M3/Hr Net weight 1500kg 2100kg 2100kg 3000kg Gross weight 1700kg 2450kg 2450kg 3500kg Dimensions (L x W x H) 86" x 70" x 77" 87" x 78" x 74" 87" x 78 " x 74" 88" x 106" x 77" Packing size (L x W x H) 90" x 76" x 38" 103" x 84" x 80" 103" x 84" x 80" 101" x 86" x 89 "
