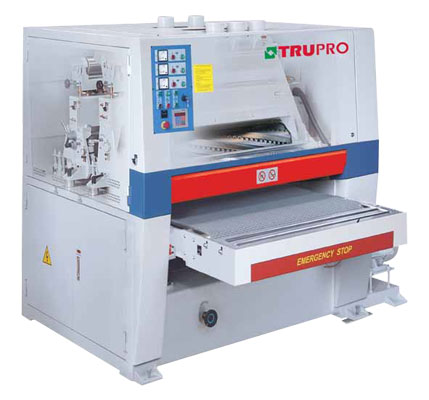

Planer Sander
52" (1300mm)
Standard Duty Spiral Cutterhead Planer Sander

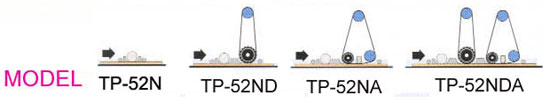

Model TP-52N TP-52ND TP-52NA TP-52NDA Working width 1300mm 1300mm 1300mm 1300mm Working height 125mm 125mm 125mm 125mm Main motor standard 25HP 25, 20HP 25, 25HP 25, 25, 25HP Feed motor 3HP 5HP 5HP 5HP Table hoist motor 1/2HP 1/2HP 1HP 1HP Feed speeds (variable) 4-16 M/min 4-16 M/min 4-16 M/min 4-16 M/min Sanding belt size X 52" x 75" 52" x 75 " 52" x 75 " Numbers of knife insert 340pcs 340pcs 340pcs 340pcs Compressed air required 4 kg/cm2 5 kg/cm2 5 kg/cm2 5 kg/cm2 Exhaust volume requirement 6860 M3/Hr 7760 M3/Hr 7760 M3/Hr 9870 M3/Hr Net weight 1800kg 2500kg 2500kg 4500kg Gross weight 2050kg 2850kg 2850kg 4900kg Dimensions (L x W x H) 90" x 70" x 77" 90" x 78" x 74" 90" x 78 " x 74" 94" x 104" x 76" Packing size (L x W x H) 96" x 76" x 83 " 96" x 84" x 80" 96" x 84" x 80" 109" x 89" x 89 "
