Planer Sander

24" (610mm)
Heavy Duty Spiral Cutterhead Planer Sander

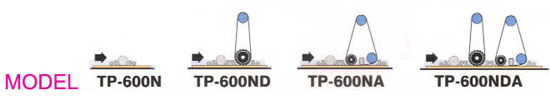

  • Model TP-600N TP-600ND TP-600NA TP-600NDA
    Working width 610mm 610mm 610mm 610mm
    Working height 125mm 125mm 125mm 125mm
    Main motor standard 20HP 20, 20HP 20, 20HP 20, 20, 20HP
    Feed motor 2HP 3HP 3HP 3HP
    Table hoist motor 1/2HP 1/2HP 1/2HP 1/2HP
    Feed speeds (variable) 3-16 M/min 3-16 M/min 3-16 M/min 3-16 M/min
    Sanding belt size - 25" x 75 " 25" x 75" 25" x 75"
    Numbers of knife insert 160pcs 160pcs 160pcs 160pcs
    Compressed air required 4 kg/cm2 5 kg/cm2 5 kg/cm2 6 kg/cm2
    Exhaust volume requirement 1030 M3/Hr 2064 M3/Hr 2064 M3/Hr 3500 M3/Hr
    Net weight 1200kg 2000kg 2000kg 2800kg
    Gross weight 1500kg 2450kg 2450kg 3150kg
    Dimensions (L x W x H) 62" x 56" x 81" 79" x 70" x 81" 79" x 70" x 81" 100" x 70" x 80"
    Packing size (L x W x H) 65" x 59" x 85 " 82" x 73" x 84 " 82" x 73" x 84" 103" x 73" x 86"
