Planer Sander

36 (910mm)

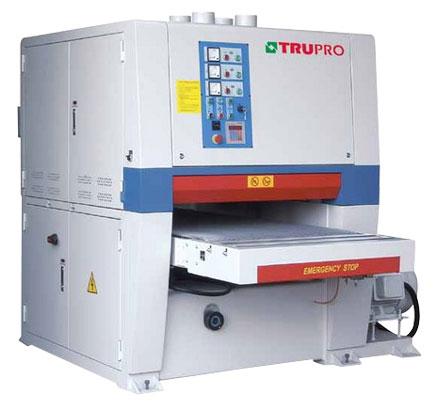

Heavy Duty Spiral Cutterhead Planer Sander

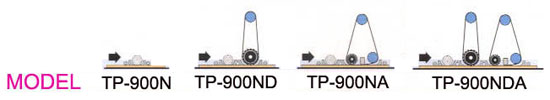

  • Model TP-900N TP-900ND TP-900NA TP-900NDA
    Working width 910mm 910mm 910mm 910mm
    Working height 125mm 125mm 125mm 125mm
    Main motor standard 20HP 20, 20HP 20, 20HP 20, 20, 20HP
    Feed motor 2HP 3HP 3HP 3HP
    Table hoist motor 1/2HP 1/2HP 1/2HP 1/2HP
    Feed speeds (variable) 3-16 M/min 3-16 M/min 3-16 M/min 3-16 M/min
    Sanding belt size - 37" x 75 " 37" x 75" 37" x 75"
    Numbers of knife insert 240pcs 240pcs 240pcs 240pcs
    Compressed air required 4 kg/cm2 5 kg/cm2 5 kg/cm2 6 kg/cm2
    Exhaust volume requirement 1720 M3/Hr 3500 M3/Hr 3500 M3/Hr 5180 M3/Hr
    Net weight 1400kg 2700kg 2700kg 3700kg
    Gross weight 1810kg 3150kg 3150kg 4200kg
    Dimensions (L x W x H) 65" x 60" x 81" 83" x 81" x 81" 83" x 81" x 81" 98" x 84" x 81"
    Packing size (L x W x H) 68" x 62" x 87 " 86" x 85" x 85 " 86" x 85" x 85" 102" x 86" x 85"
