Planer Sander
43" (1100mm)

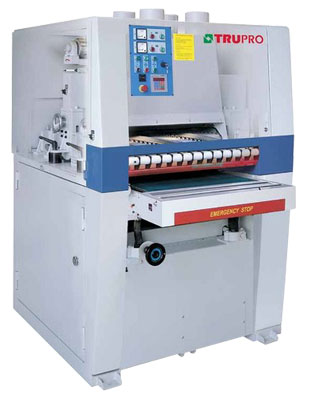

Heavy Duty Spiral Cutterhead Planer Sander

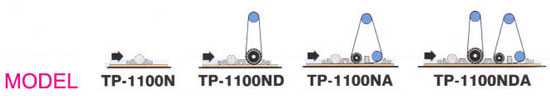

Model TP-1100N TP-1100ND TP-1100NA TP-1100NDA Working width 1100mm 1100mm 1100mm 1100mm Working height 125mm 125mm 125mm 125mm Main motor standard 25HP 25, 25HP 25, 20HP 25, 25, 20HP Feed motor 3HP 3HP 3HP 5HP Table hoist motor 1/2HP 1/2HP 1/2HP 1HP Feed speeds (variable) 3-16 M/min 3-16 M/min 3-16 M/min 3-16 M/min Sanding belt size - 43" x 84 " 43" x 84" 43" x 84" Numbers of knife insert 280pcs 280pcs 280pcs 280pcs Compressed air required 4 kg/cm2 5 kg/cm2 6 kg/cm2 6 kg/cm2 Exhaust volume requirement 2600 M3/Hr 5180 M3/Hr 5180 M3/Hr 7760 M3/Hr Net weight 2000kg 3200kg 3200kg 4100kg Gross weight 2300kg 3650kg 3650kg 4500kg Dimensions (L x W x H) 98" x 70" x 80" 98" x 88" x 80" 98" x 86" x 80" 98" x 103" x 80" Packing size (L x W x H) 102" x 74" x 89 " 102" x 89" x 89 " 102" x 89" x 89" 102" x 89" x 89"
