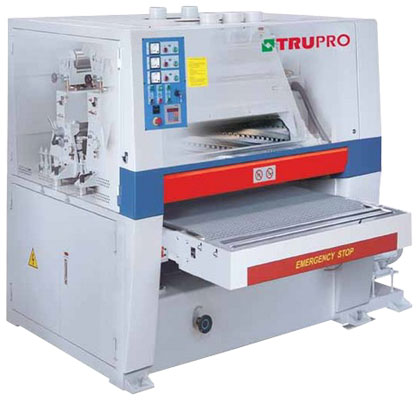

Planer Sander
52" (1300mm)
Heavy Duty Spiral Cutterhead Planer Sander

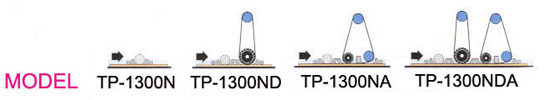

Model TP-1300N TP-1300ND TP-1300NA TP-1300NDA Working width 1300mm 1300mm 1300mm 1300mm Working height 125mm 125mm 125mm 125mm Main motor standard 30HP 30, 30HP 30, 25HP 30, 30, 25HP Feed motor 3HP 5HP 5HP 7 1/2HP Table hoist motor 1/2HP 1HP 1HP 1HP Feed speeds (variable) 3-16 M/min 3-16 M/min 3-16 M/min 3-16 M/min Sanding belt size - 52" x 84 " 52" x 84" 52" x 84" Numbers of knife insert 340pcs 340pcs 340pcs 340pcs Compressed air required 4 kg/cm2 5 kg/cm2 5 kg/cm2 6 kg/cm2 Exhaust volume requirement 3500 M3/Hr 6860 M3/Hr 6860 M3/Hr 9870 M3/Hr Net weight 2500kg 4100kg 4100kg 5350kg Gross weight 2800kg 4500kg 4500kg 5880kg Dimensions (L x W x H) 107" x 70" x 83" 107" x 88" x 80" 107" x 88" x 80" 118" x 88 " x 80" Packing size (L x W x H) 109" x 74" x 89 " 109" x 89" x 89 " 109" x 89" x 89" 109" x 89" x 89"
