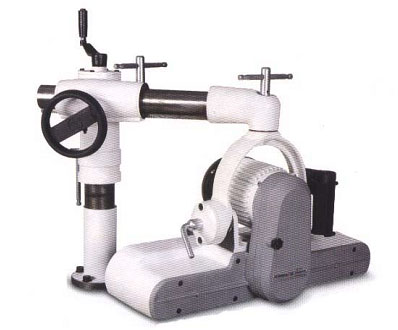

Power Feeder
PF-66
Arc Feeder
FEATURES:
- 6 Roller, 6-Speed
- 1/2 HP (3 ph only)
- 90°/180° Auto-lock
- Universal stand (US/13) as standard Optional
Model PF-66 Horsepower 1/2 HP / 3ph only Rotation Forward / Reverse Number of speeds 6- speeds Range of speeds 3.5/6.1/7.1/8.1/12.2/16.2 m/min Rollers Ø100×50mm×6pcs / Synthetic rubber Roller suspension 18 mm Distance between rollers 104-104-104-104-104 mm Vertical movement 190 mm Horizontal movement 190 mm Max. height of rollers parallel to tabletop 180 mm
