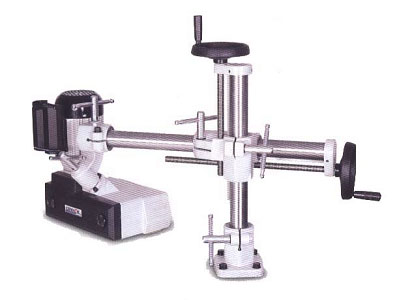

Power Feeder
PF-308
Cabinet Feeder (Light Duty)
FEATURES:
- 3 Roller
- 1/2 HP motor
- 4 speeds on single phase motor
- 8 speeds on three phase motor
Model PF-308 Horsepower 1/2 HP / 1 or 3ph Rotation Forward / Reverse Number of speeds 4- speeds(1 ph) 8-speeds(3 ph) Range of speeds 2.9/4.5/7.5/11.5 m/min (1 ph)
2.9/4.5/5.8/7.5/9/11.5/15/23 m/min (3ph)Rollers Ø100×50mm×3pcs / Synthetic rubber Roller suspension 24 mm Distance between rollers 120-131 mm Vertical movement 260 mm Horizontal movement 415 mm Max. height of rollers parallel to tabletop 200 mm
