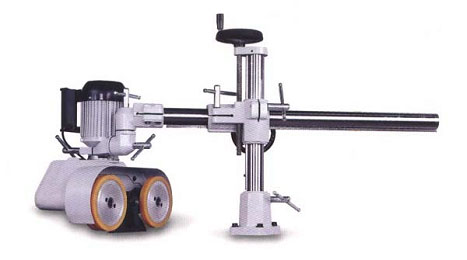

Power Feeder
PF-24 / 24S
Saw-Mate Feeder (Specialty)
FEATURES:
- Word's 1st powerfeeder specially designed for table saw.
- It is a "blade guard". "hold down", " feather board" and "anti-kickback" all in one

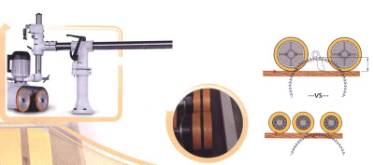

- Dual-rollers provide saw blade clearance of up to 70mm "above" feeding stock, reflect " effective cutting" of the blade, more vertical cutting (downward) than diagonal cutting (pushing)
- 2 dual rollers, 4 speeds
- 1/2 HP, single or 3 phase.
Model PF-24 / 24S Horsepower 1/2 HP / 1 or 3ph Rotation Forward / Reverse Number of speeds 4- speeds Range of speeds 4/8/11/22 m/min Rollers Ø180×20×3pcs / PU Roller suspension 28 mm Distance between rollers 290 mm Vertical movement 250 mm Horizontal movement 960 mm Max. height of rollers parallel to tabletop 138 mm
