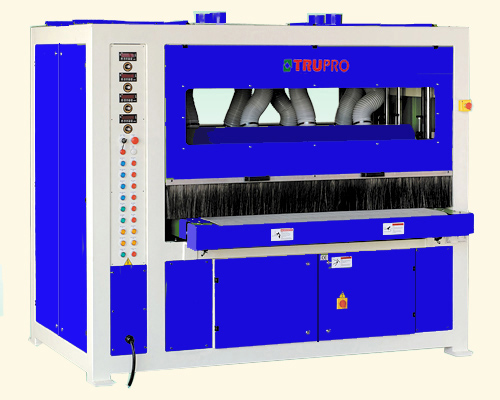

Profile Door Sander
PDS-1350U2D2
Panel Brush Sander
FEATURES:

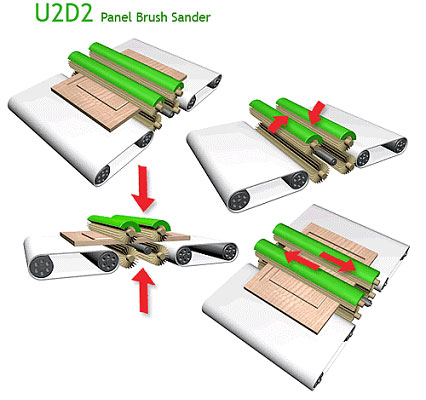

- 2 sets of upper and 2 sets of lower sanding heads with oscillation function to provide more efficiency on sanding without any coffin corner.
- Electrical control by inverter which includes sanding head with variable speed.
- High quality conveyor belt for long service lifespan.
- Heavy- duty base and frame made of steel provides stability.
- Firm and suitable vacuum (optional ) to hold small workpieces properly.
- Standard oscillation system for all rollers, start and stop control with switch.
- Thickness adjusted by electrical control (optional).
- It can be used to sand cabinet doors, drawer fronts, face frames, entry doors, shutters and other irregular surface or three-dimensional parts in one process.
Model PDS-1350U2D2 Max. working width 53" (1350mm) Max. working height 6" (152mm) Min. Work-pieces length (For hold down roller) 22" (560mm) Min. Work-pieces thickness 3/8" (10mm) (up and down) Variable Feeding speed 50HZ (1.5 ~ 9.5 M/min)
60HZ (1.8 ~ 11M/min)Speed of sanding wheel 200~1200 R.P.M Horizontal sanding head motor 4 X 3 HP (2.2KW) Horizontal / Oscillation 32mm / 28RPM Conveyor motor (For hold down roller) 1/2HP (0.37KW) Conveyor motor (For vacuum) 3HP (2.2KW) Moving brush head motor 1/4HP (0.18KW) Brush Diameter 280mm (or) 320mm Machine Dimension ( D x W x H ) 200cm x 223cm x 190cm Packing Dimension ( D x W x H ) 210cm x 230cm x 220cm Net Weight (vacuum / hold down roller) --- / 1680KGS Gross Weight (vacuum / hold down roller) --- / 2080KGS
